IDP2308 Digital Multi-Mode PFC + LLC Combo Controller

IDP2308 Description

IDP2308 Digital Multi-Mode PFC + LLC Combo Controller Product Highlights * Integrated 600V startup cell * Integrated floating driver based o.
The IDP2308 is a multi-mode PFC and LLC controller combined with a floating high side driver and a startup cell.

IDP2308 Features

* Multi-mode PFC
* Configurable PFC gate driver
* Synchronous PFC and LLC burst mode control
* Configurable non-linear LLC VCO curve
* Configurable soft-start

IDP2308 Applications

* LCD-TV 75W ~ 300W
* Generarl SMPS IDP2308 HSGD Vout_2 GD0 HSVCC VAC ZCD HSGND CS0 GD1 VS CS1 Vout_1 VCC HV GND HBFB MFIO GD0 Configuration STANDBY GD1 Figure 1 Typical Application Product Type IDP2308 Package PG-DSO-14 Marking DP2308 IDP2308 Digital Multi-Mode PFC + LLC C

📥 Download Datasheet

Preview of IDP2308 PDF

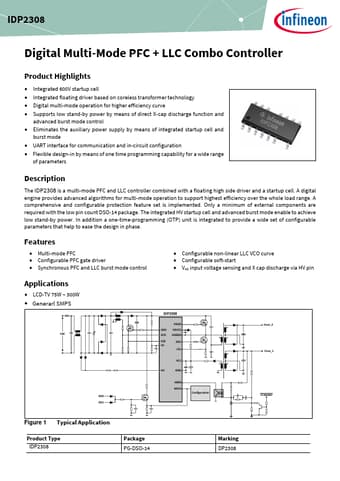

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDP2308
Manufacturer
Infineon ↗
File Size
1.20 MB
Datasheet
IDP2308-Infineon.pdf
Description
Digital Multi-Mode PFC + LLC Combo Controller
