IFCM15S60GS, IFCM15S60GD Datasheet - Infineon

IFCM15S60GS Control Integrated POwer System - CIPOS

The CIPOS™ Mini family offers the chance for integrating various power and control components of inverter and single boost PFC stages to increase reliability and optimize PCB size and system cost. It is designed to control three-phase motors in variable speed drives for applications such as air-cond.

IFCM15S60GS Features

* Package

* Fully isolated dual in-line molded module

* Very low thermal resistance due to DCB substrate

* Lead-free terminal plating; RoHS compliant Inverter

* TRENCHSTOP™ IGBTs for inverter

* Rugged SOI gate driver technology with stability against transient and negative voltage

IFCM15S60GD-Infineon.pdf

This datasheet PDF includes multiple part numbers: IFCM15S60GS, IFCM15S60GD. Please refer to the document for exact specifications by model.

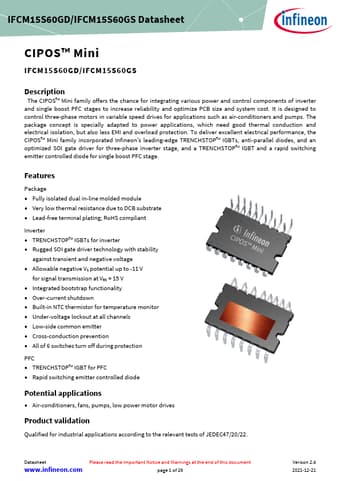

IFCM15S60GS Datasheet Preview Page 2 IFCM15S60GS Datasheet Preview Page 3

Datasheet Details

Part number:

IFCM15S60GS, IFCM15S60GD

Manufacturer:

Infineon ↗

File Size:

1.24 MB

Description:

Control integrated power system - cipos.

Note:

This datasheet PDF includes multiple part numbers: IFCM15S60GS, IFCM15S60GD.
Please refer to the document for exact specifications by model.
