IGD03N120S7 - 1200V IGBT

Infineon

IGD03N120S7 Datasheet Preview — Preview of IGD03N120S7 PDF

Datasheet Details

Part number	IGD03N120S7
Manufacturer	Infineon ↗
File Size	934.31 KB
Description	1200V IGBT
Datasheet	IGD03N120S7-Infineon.pdf

IGD03N120S7 Product details

Description

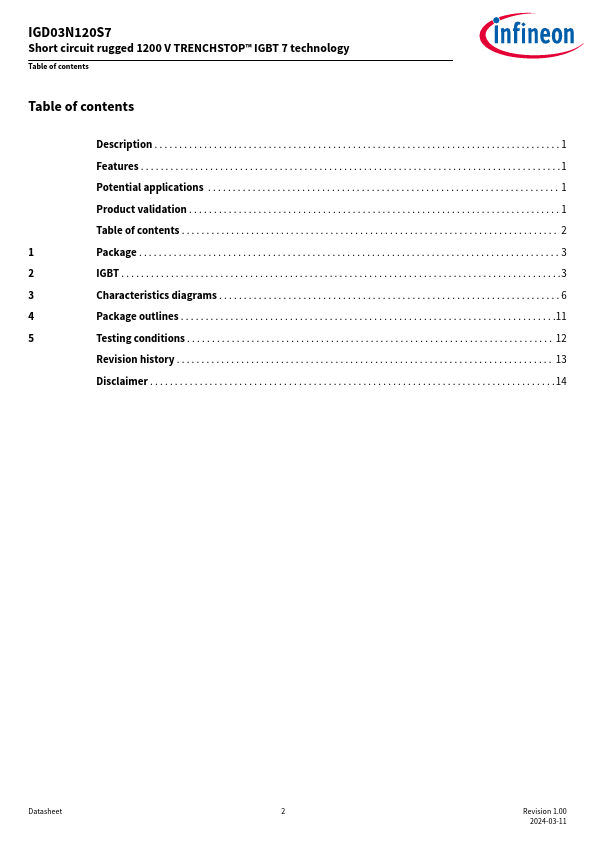

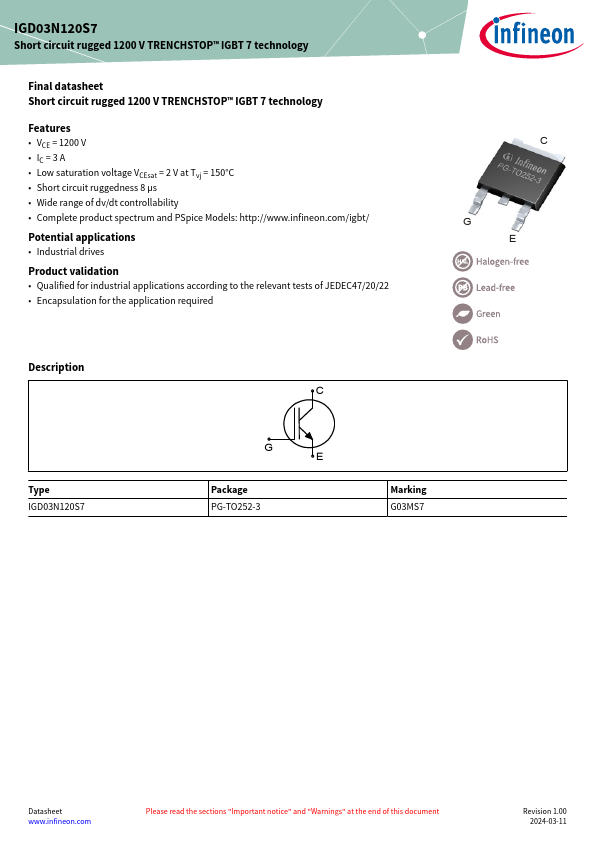

Type IGD03N120S7 C G E Package PG-TO252-3 Marking G03MS7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-03-11 IGD03N120S7 Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology Table of contents Table of contents Description .

Features

VCE = 1200 V.
IC = 3 A.
Low saturation voltage VCEsat = 2 V at Tvj = 150°C.
Short circuit ruggedness 8 µs.
Wide range of dv/dt controllability.
Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Potential.
