* C
* Very low VCE(sat) 1.5V (typ.)
* Maximum junction temperature 175°C
* Short circuit withstand time 5µs
* TRENCHSTOPTM and Fieldstop technology for 600V applications offers: - very tight parameter distribution - high ruggedness, temperature stable behavior - hig

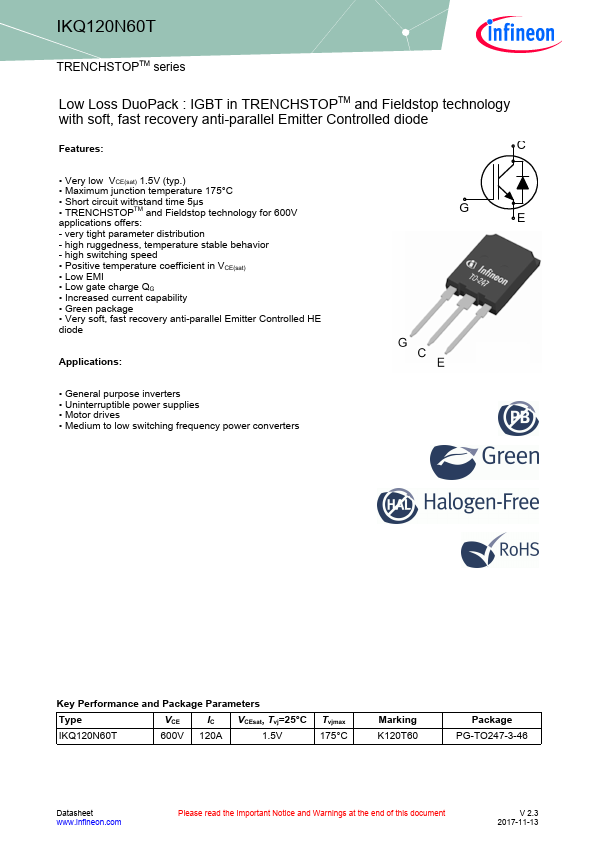

IKQ120N60T Datasheet (1.87 MB)
IKQ120N60T
1.87 MB
Igbt.
IKQ120N60T
TRENCHSTOPTM series
Low Loss DuoPack : IGBT in TRENCHSTOPTM and Fieldstop technology
with soft, fast recovery anti-parallel Emitter Cont.
