IPD023N04NF2S - 40V MOSFET

Datasheet Summary

Description

1 Maximum ratings 3 T

Features

Optimized for wide range of.

Infineon

📥 Download Datasheet

Datasheet Details

Part number	IPD023N04NF2S
Manufacturer	Infineon
File Size	945.40 KB
Description	40V MOSFET
Datasheet	IPD023N04NF2S Datasheet
Additional preview pages of the IPD023N04NF2S datasheet.

📁 Similar Datasheet

IPD025N06N - N-Channel MOSFET (INCHANGE)
IPD031N03L - N-Channel MOSFET (INCHANGE)
IPD031N06L3 - N-Channel MOSFET (INCHANGE)
IPD033N06N - N-Channel MOSFET (INCHANGE)
IPD034N06N3 - N-Channel MOSFET (INCHANGE)
IPD036N04L - N-Channel MOSFET (INCHANGE)
IPD038N06N3 - N-Channel MOSFET (INCHANGE)
IPD038N06N3G - Power-Transistor (Infineon Technologies)
IPD03N03LA - Power-Transistor (Infineon Technologies)
IPD03N03LB - Power-Transistor (Infineon Technologies)

Other Datasheets by Infineon

IPD025N06N - MOSFET
IPD028N06NF2S - 60V MOSFET
IPD029N04NF2S - MOSFET
IPD031N03L - Power-Transistor
IPD031N03LG - Power-Transistor
IPD031N06L3 - Power-Transistor
IPD031N06L3G - Power-Transistor
IPD033N06N - MOSFET

Full PDF Text Transcription

Click to expand full text

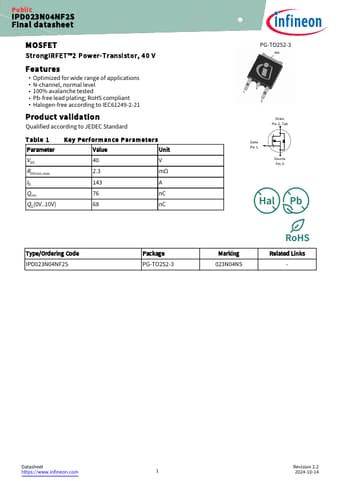

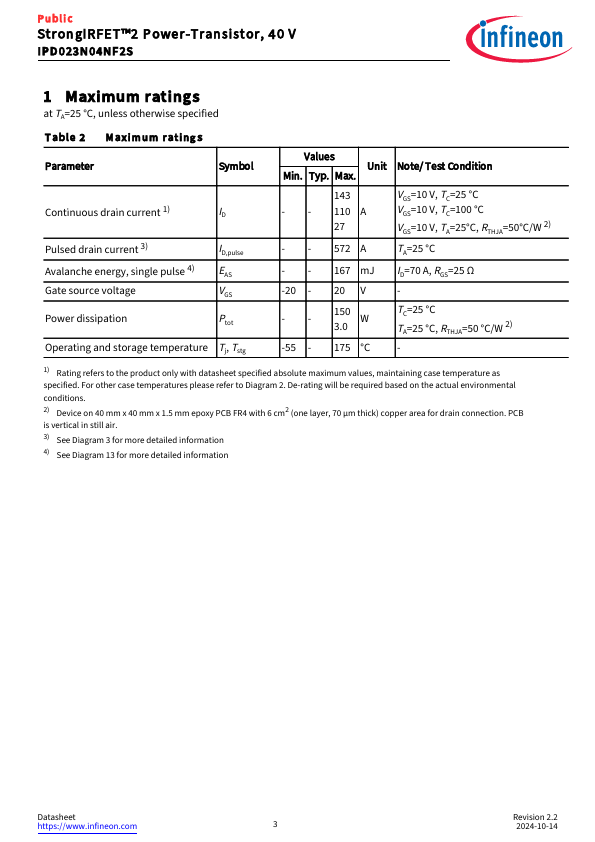

Public IPD023N04NF2S Final datasheet MOSFET StrongIRFET™2 Power‑Transistor, 40 V Features • Optimized for wide range of applications • N‑channel, normal level • 100% avalanche tested • Pb‑free lead plating; RoHS compliant • Halogen‑free according to IEC61249‑2‑21 Product validation Qualified according to JEDEC Standard Table 1 Parameter VDS RDS(on),max ID Qoss QG(0V..10V) Key Performance Parameters Value Unit 40 V 2.3 mΩ 143 A 76 nC 68 nC PG‑TO252‑3 tab 2 1 3 Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Type/Ordering Code IPD023N04NF2S Package PG‑TO252‑3 Marking 023N04NS Related Links ‑ Datasheet https://www.infineon.com 1 Revision 2.2 2024‑10‑14 Public StrongIRFET™2 Power‑Transistor, 40 V IPD023N04NF2S Table of Contents Description . . . . . . . . . . . . . . . .
