IPD50N06S2-14 - Power Transistor

Infineon

📥 Download Datasheet

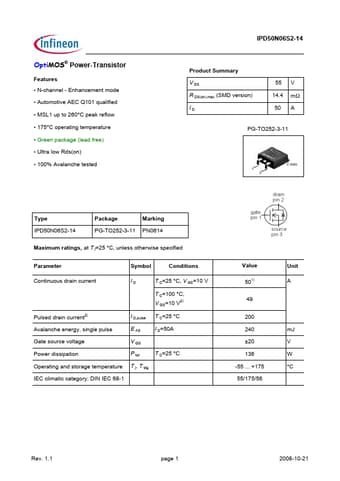

IPD50N06S2-14 Datasheet Preview — Preview of IPD50N06S2-14 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N06S2-14
Manufacturer	Infineon ↗
File Size	145.92 KB
Description	Power Transistor
Datasheet	IPD50N06S2-14-Infineon.pdf

IPD50N06S2-14 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPD50N06S2-14 Product Summary V DS R DS(on),max (SMD version) ID 55 V 14.4 mΩ 50 A PG-TO252-3-11 Type IPD50N06S2-14 Package Marking PG-TO252-3-11 PN0614 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditio.
