IPF04N03LA Power Transistor

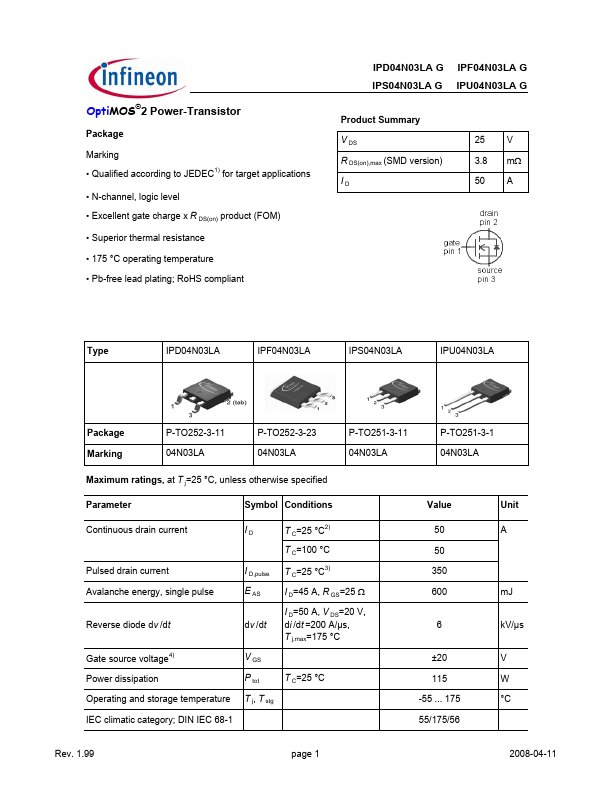

Type OptiMOS®2 Power-Transistor Package Marking Qualified according to JEDEC1) for target applications N-channel, logic level Excellent gate charge x R DS(on) product (FOM) Superior thermal resistance 175 °C operating temperature Pb-free lead plating; RoHS compliant IPD04N03LA G IPF04N03LA G IPS04N03LA G IPU04N03LA G Product Summary V DS R DS(on),max (SMD version) ID 25 V 3.8 mΩ 50 A Type IPD04N03LA IPF04N03LA IPS04N03LA IPU04N0.
