IPLK60R1K5PFD7 Datasheet - Infineon

IPLK60R1K5PFD7, 600V MOSFET

IPLK60R1K5PFD7 MOSFET 600V CoolMOSª PFD7 SJ Power Device CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to.

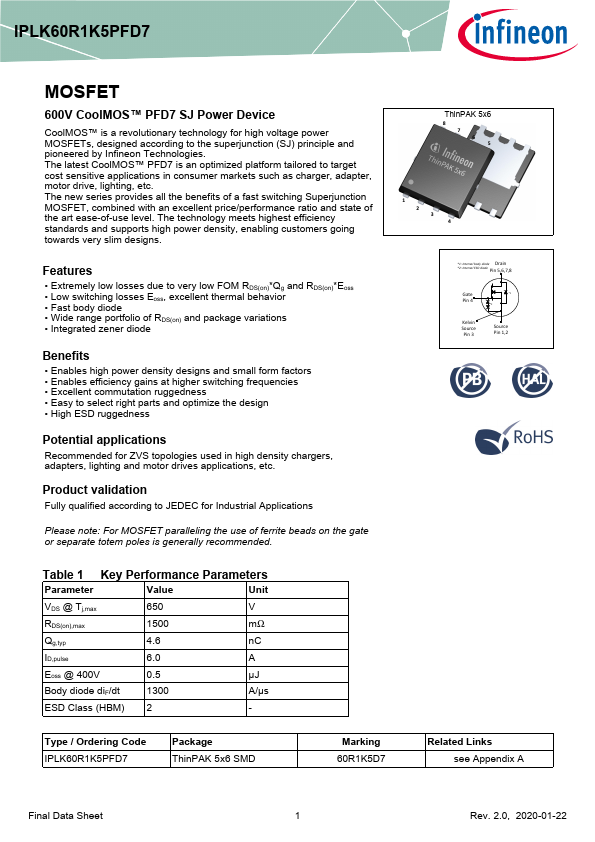

datasheet Preview Page 1 from Datasheet4u.com

IPLK60R1K5PFD7-Infineon.pdf

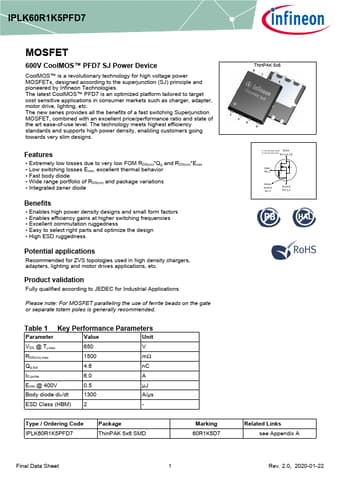

IPLK60R1K5PFD7 Datasheet Preview — Preview of IPLK60R1K5PFD7 PDF

Datasheet Details

Part number:

IPLK60R1K5PFD7

Manufacturer:

Infineon ↗

File Size:

1.34 MB

Description:

600V MOSFET

Features

* Extremely low losses due to very low FOM RDS(on)
* Qg and RDS(on)
* Eoss
* Low switching losses Eoss, excellent thermal behavior
* Fast body diode
* Wide range portfolio of RDS(on) and package variations
* Integrated zener diode Benefits
* Enable

Applications

* in consumer markets such as charger, adapter, motor drive, lighting, etc. The new series provides all the benefits of a fast switching Superjunction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level. The technology meets highest efficiency standards an
