IPLK70R750P7 Datasheet - Infineon

IPLK70R750P7, 700V MOSFET

IPLK70R750P7 MOSFET 700V CoolMOSª P7 Power Transistor CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to th.

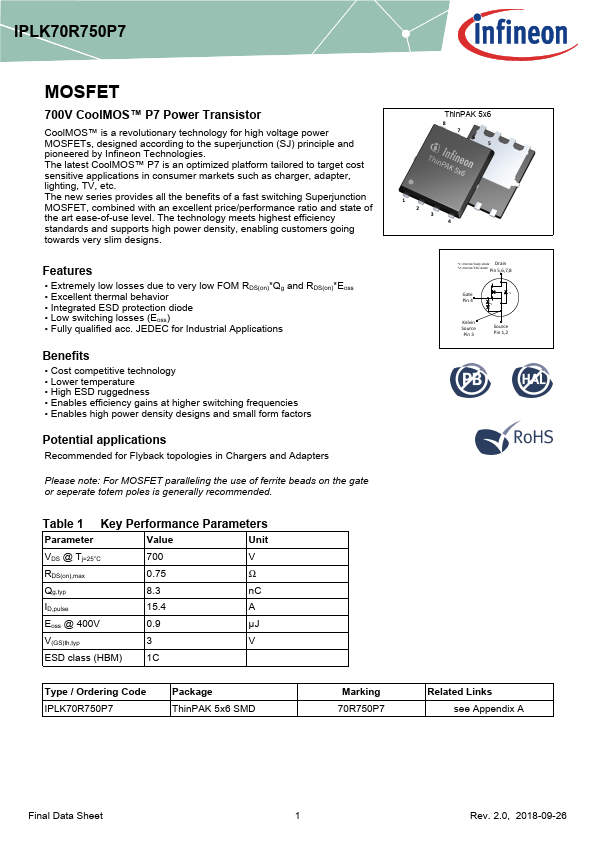

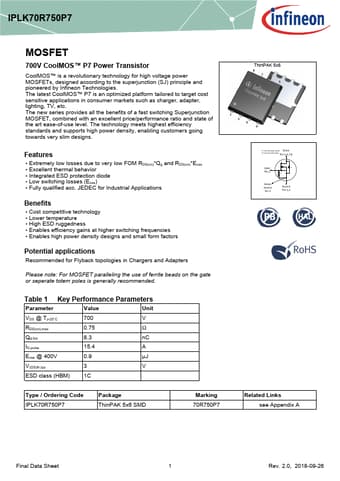

datasheet Preview Page 1 from Datasheet4u.com

IPLK70R750P7-Infineon.pdf

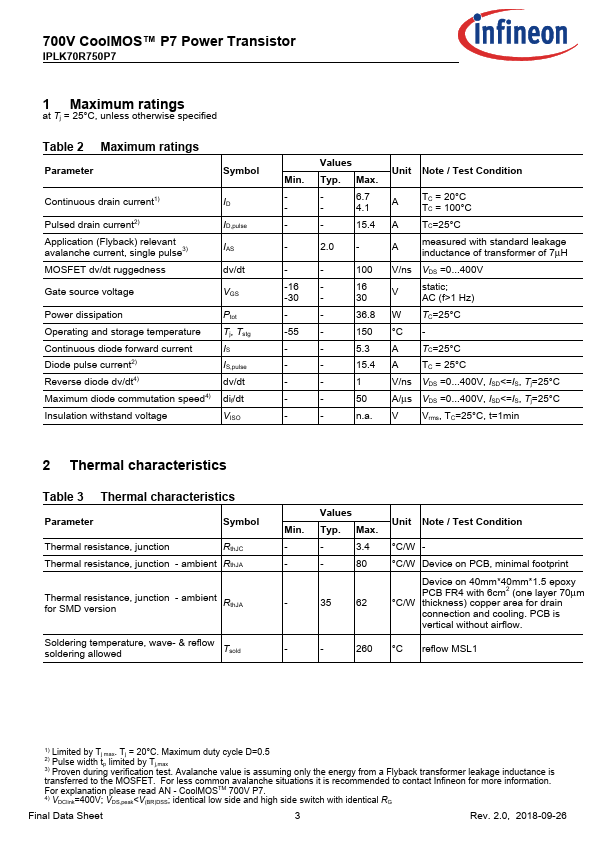

IPLK70R750P7 Datasheet Preview — Preview of IPLK70R750P7 PDF

Datasheet Details

Part number:

IPLK70R750P7

Manufacturer:

Infineon ↗

File Size:

1.78 MB

Description:

700V MOSFET

Features

* Extremely low losses due to very low FOM RDS(on)
* Qg and RDS(on)
* Eoss
* Excellent thermal behavior
* Integrated ESD protection diode
* Low switching losses (Eoss)

Applications

* in consumer markets such as charger, adapter, lighting, TV, etc. The new series provides all the benefits of a fast switching Superjunction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level. The technology meets highest efficiency standards and support
