IPTC044N15NM5 150V MOSFET

Infineon

Description

IPTC044N15NM5 MOSFET OptiMOSTM 5 Power-Transistor, 150 V .

📥 Download Datasheet

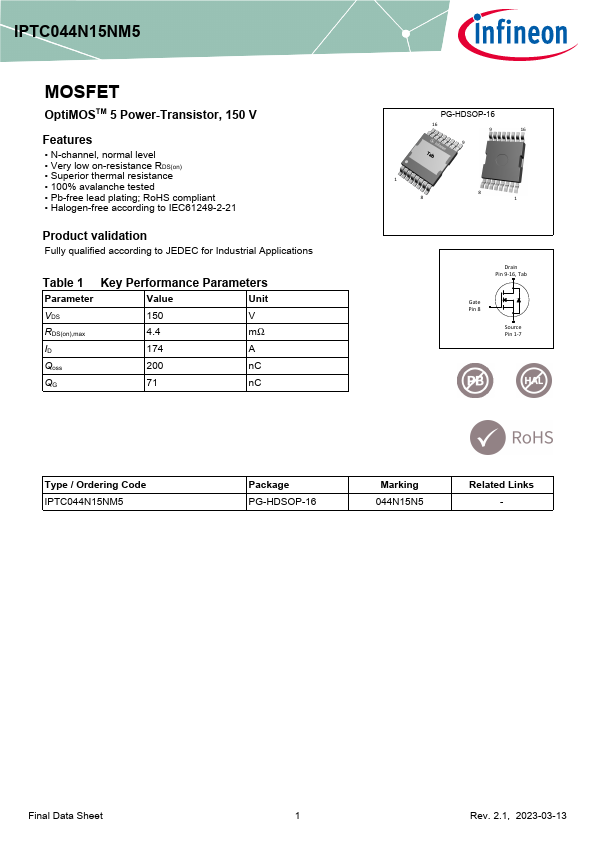

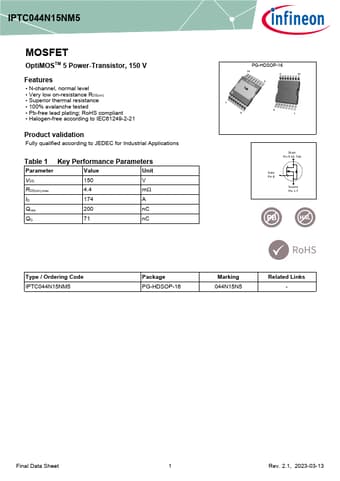

IPTC044N15NM5 Datasheet Preview — Preview of IPTC044N15NM5 PDF

Datasheet Specifications

Part number: IPTC044N15NM5
Manufacturer: Infineon ↗
File Size: 1.71 MB
Datasheet: IPTC044N15NM5-Infineon.pdf
Description: 150V MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 150 V RDS(on),max 4.4 mΩ ID 174 A Qoss 200 nC QG 71 nC PG-HDSOP-16 16 9 16 9 1 8 8 1 Drain Pin 9-16, Tab Gate Pin 8 Source Pin 1-7 Type / Ordering Code IPTC044N15NM5 Package PG-HDSOP-16 Marking 044N15N5
