IPU04N03LA Datasheet - Infineon

IPU04N03LA Power Transistor

Type OptiMOS®2 Power-Transistor Package Marking Qualified according to JEDEC1) for target applications N-channel, logic level Excellent gate charge x R DS(on) product (FOM) Superior thermal resistance 175 °C operating temperature Pb-free lead plating; RoHS compliant IPD04N03LA G IPF04N03LA G IPS04N03LA G IPU04N03LA G Product Summary V DS R DS(on),max (SMD version) ID 25 V 3.8 mΩ 50 A Type IPD04N03LA IPF04N03LA IPS04N03LA IPU04N0.

IPU04N03LA-Infineon.pdf

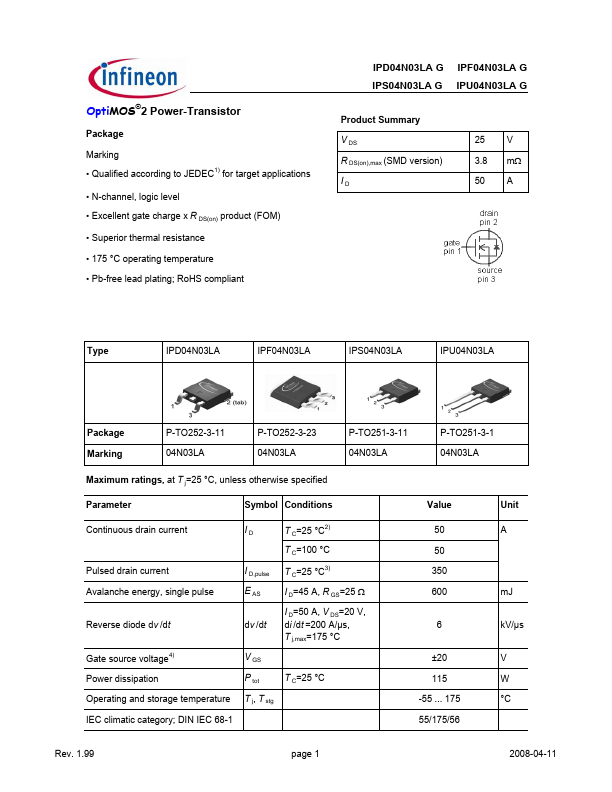

Preview of IPU04N03LA PDF

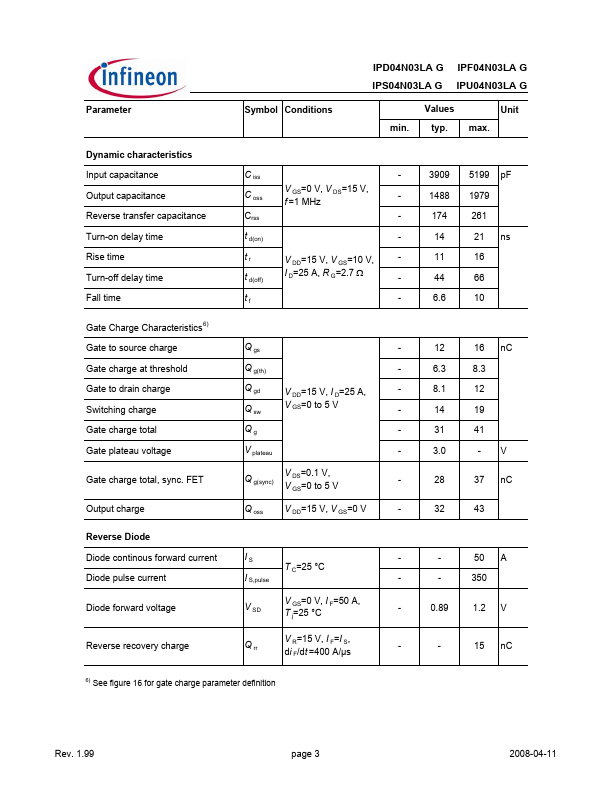

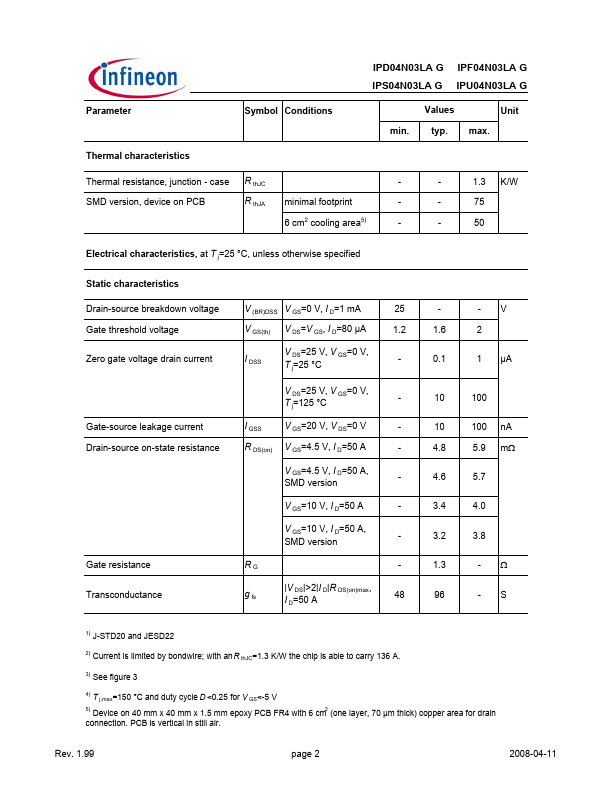

IPU04N03LA Datasheet Preview Page 2 IPU04N03LA Datasheet Preview Page 3

Datasheet Details

Part number:

IPU04N03LA

Manufacturer:

Infineon ↗

File Size:

529.28 KB

Description:

Power transistor.
