IPU04N03LAG, IPU04N03LA - Power Transistor

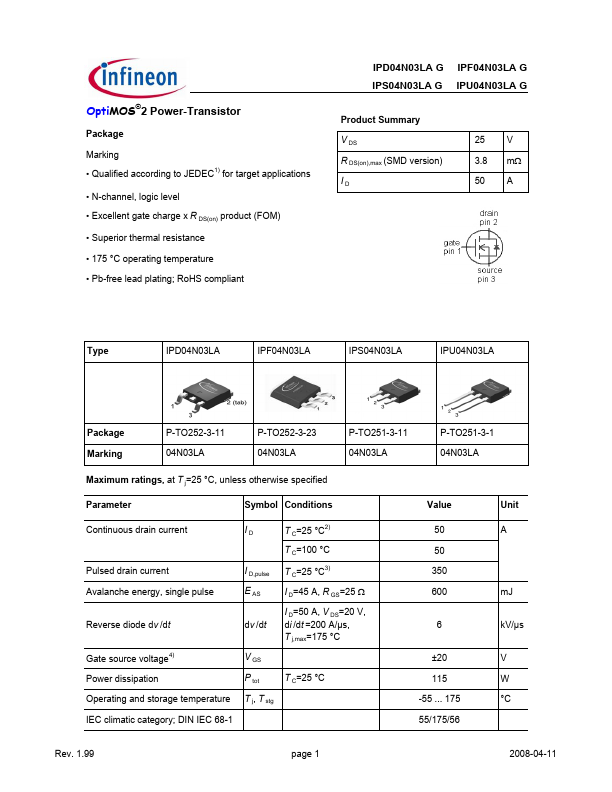

IPU04N03LAG Description

Type OptiMOS®2 Power-Transistor Package Marking * Qualified according to JEDEC1) for target applications * N-channel, logic level .

IPU04N03LAG Applications

* N-channel, logic level
* Excellent gate charge x R DS(on) product (FOM)
* Superior thermal resistance
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant IPD04N03LA G IPF04N03LA G IPS04N03LA G IPU04N03LA G Product Summary V DS R DS(on),ma

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPU04N03LAG, IPU04N03LA. Please refer to the document for exact specifications by model.

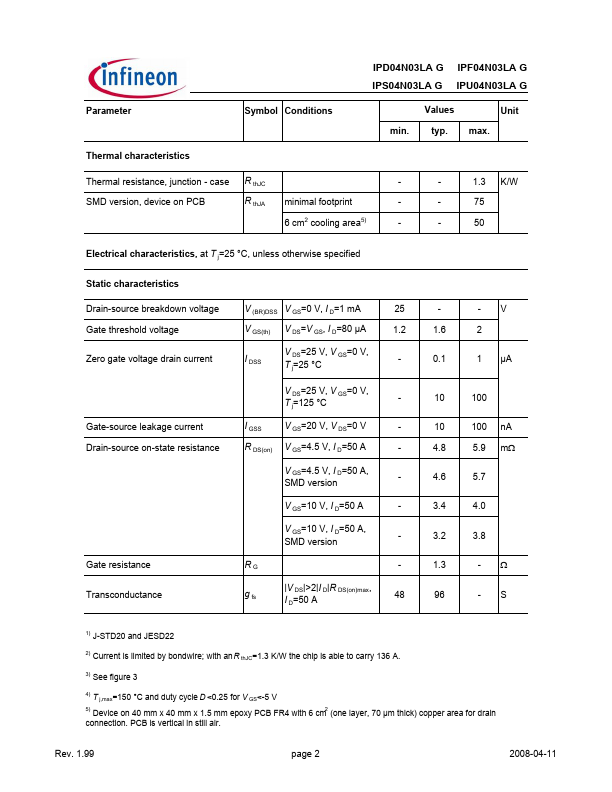

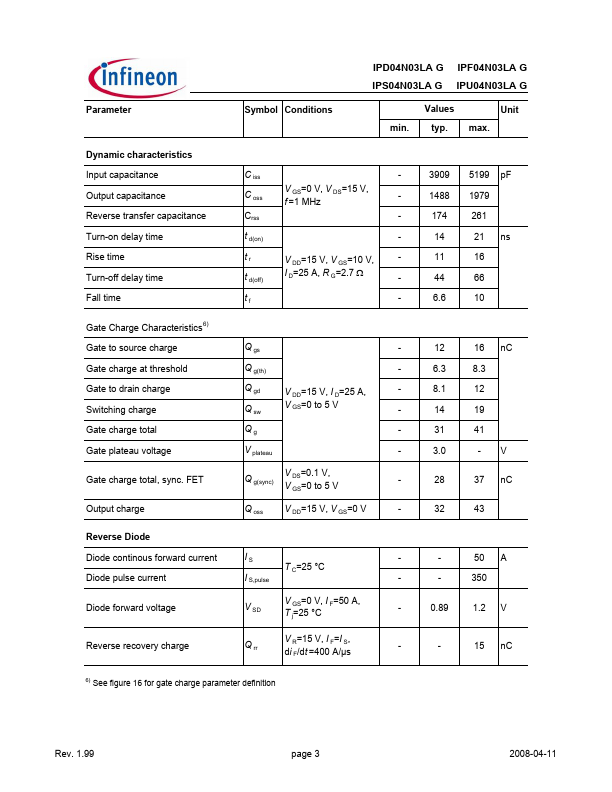

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPU04N03LAG, IPU04N03LA
Manufacturer
Infineon ↗
File Size
529.28 KB
Datasheet
IPU04N03LA-Infineon.pdf
Description
Power Transistor
Note
This datasheet PDF includes multiple part numbers: IPU04N03LAG, IPU04N03LA.
Please refer to the document for exact specifications by model.
