ISP752R - Smart power high-side-switch

Infineon

ISP752R Datasheet Preview — Preview of ISP752R PDF

Datasheet Details

Part number	ISP752R
Manufacturer	Infineon ↗
File Size	1.61 MB
Description	Smart power high-side-switch
Datasheet	ISP752R-Infineon.pdf

ISP752R Product details

Description

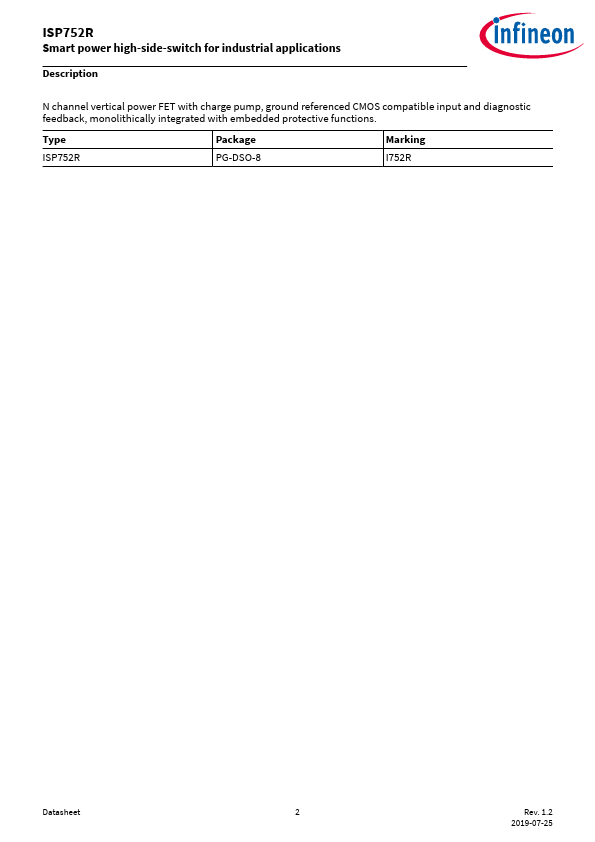

Table 1 Product summary Parameter Symbol Value Unit Overvoltage protection Vbb(AZ) 62 V Operating voltage Vbb(on) 6 to 52 V On-state resistance RON 200 mΩ Nominal load current IL(nom) 1.3 A Operating temperature Ta -30 to +85 °C Datasheet Please read the Important Notice and Warnings at the end of this document www.infineon.com/industrial-profets Rev.1.2 2019-07-25 ISP752R Smart power high-side-switch for industrial applications Description N channel vertical pow

Features

Overload protection.
Current limitation.
Short circuit protection.
Thermal shutdown with restart.
ESD-protection.
Overvoltage protection (including load dump).
Fast demagnetization of inductive loads.
Reverse battery protection with external resistor.
Open drain diagnostic output for overtemperature and short circuit.
Open load detection in OFF-state with external resistor.
CMOS compatible input.
