K40H1203 - IGBT

Description

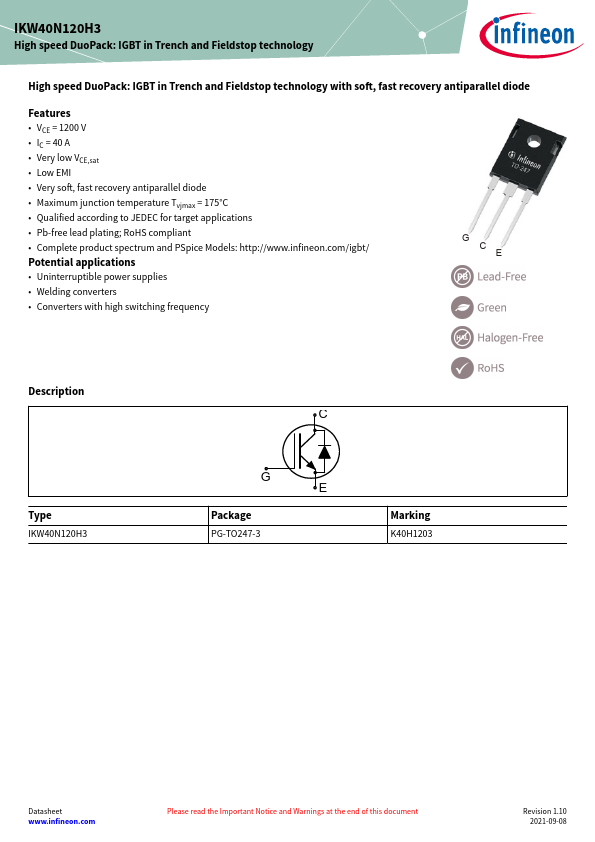

Type IKW40N120H3 C G E Package PG-TO247-3 Marking K40H1203 Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document Revision 1.10 2021-09-08 IKW40N120H3 High speed DuoPack: IGBT in Trench and Fieldstop technology Table of contents Table of contents

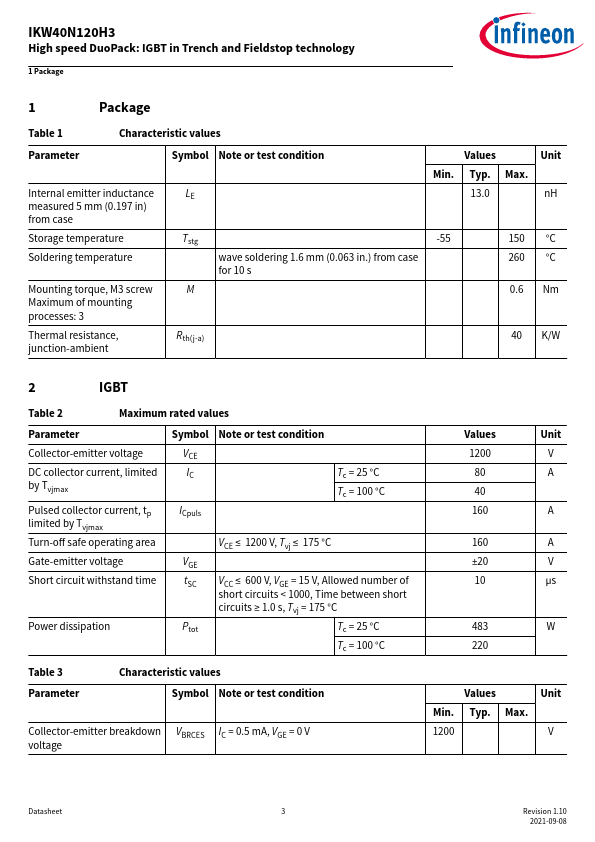

Features

  • VCE = 1200 V.
  • IC = 40 A.
  • Very low VCE,sat.
  • Low EMI.
  • Very soft, fast recovery antiparallel diode.
  • Maximum junction temperature Tvjmax = 175°C.
  • Qualified according to JEDEC for target.
