MA12070P

Filterless and High-Efficiency +4V to +26V Audio Amplifier

Infineon

MA12070P Features

* an embedded digital power management scheme. The power management algorithm dynamically adjusts switching frequency and modulation to optimize power loss and EMI across the output power range. An integrated digital-to-analog converter enables digital I2S audio stream input. It supports sample rates

MA12070P General Description

The MA12070P is a super-efficient audio power amplifier based on proprietary multi-level switching technology. It supports a 4-26V supply voltage range, allowing it to be used in many different applications. Multi-level switching enables very low power loss during operation. In addition, it allows t.

MA12070P Datasheet (2.12 MB)

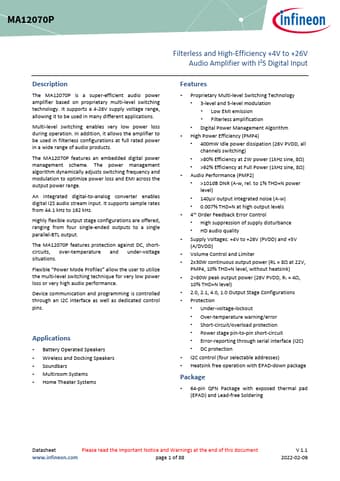

MA12070P Datasheet Preview — Preview of MA12070P PDF

Datasheet Details

Part number:

MA12070P

Manufacturer:

Infineon ↗

File Size:

2.12 MB

Description:

Filterless and high-efficiency +4v to +26v audio amplifier.
