MA5302MS 2x200W Class-D Amplifier

MA5302MS Description

MA5302MS 2x200W Class-D Amplifier, Analog Input, with Integrated 16mΩ RDS(ON) Output Stage .
The MA5302MS provides output power that is equivalent to or greater than monolithic alternatives, while occupying 50% less space and requiring little.

MA5302MS Features

* Integrated output stage with 16mΩ typical RDS(ON)
* 2 x 200W POUT in stereo mode (2Ω, THD=10%)
* 1 x 400W POUT in mono mode (4Ω, THD=10%)
* Supports both single and split supplies o Split supply operational range: ±17
* ±32V o Single supply Operational range: +32

MA5302MS Applications

* Multi-channel home theatre
* Studio monitor
* Active speaker
* Subwoofer
* Marine amplifiers
* Aftermarket car audio
* General-purpose audio power amplifier Product validation Total Harmonic Distortion Qualified for standard applications according to the relevant test

📥 Download Datasheet

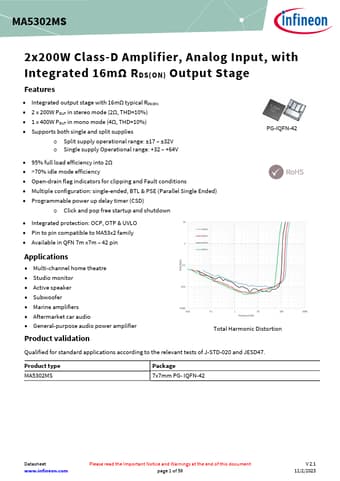

Preview of MA5302MS PDF
datasheet Preview Page 2 datasheet Preview Page 3
