P2000DL45X168 - IGBT

Datasheet Summary

Features

  • Press Pack IGBT with integrated Freewheeling Diode.
  • Long term Short on Fail behavior.
  • High dynamic robustness.
  • High short-circuit capability.
  • Low VCEsat.
  • Trench IGBT 3 Typische Anwendungen.
  • Hochleistungsumrichter.
  • Mittelspannungsantriebe.
  • Modulare Multi- Level Umrichter MMC für HGÜ und Kompensationsanlagen.
  • DC Leistungsschalter Typical.

📥 Download Datasheet

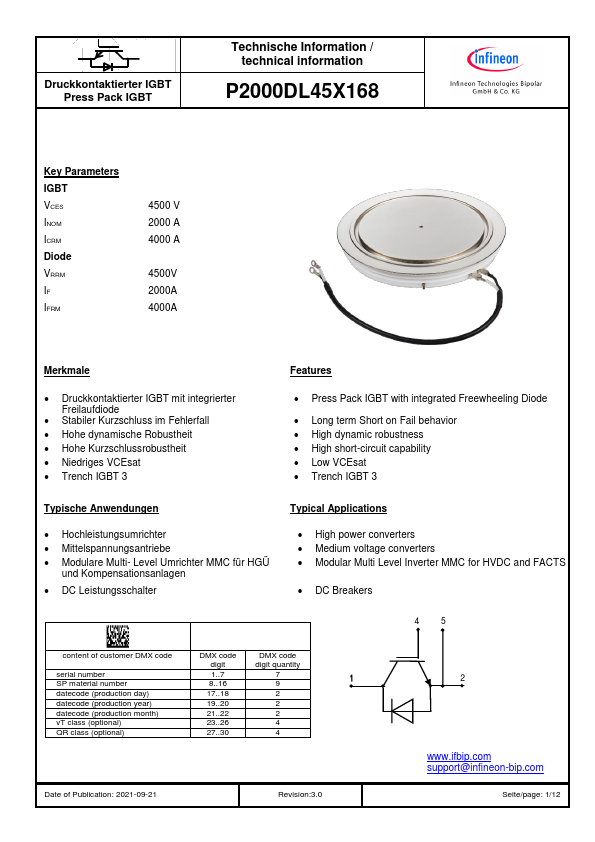

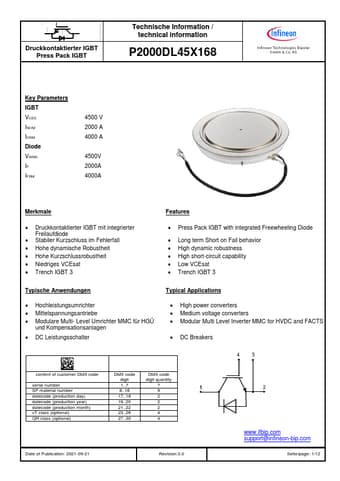

Datasheet preview – P2000DL45X168

Datasheet Details

Part number P2000DL45X168
Manufacturer Infineon
File Size 888.01 KB
Description IGBT
Datasheet download datasheet P2000DL45X168 Datasheet

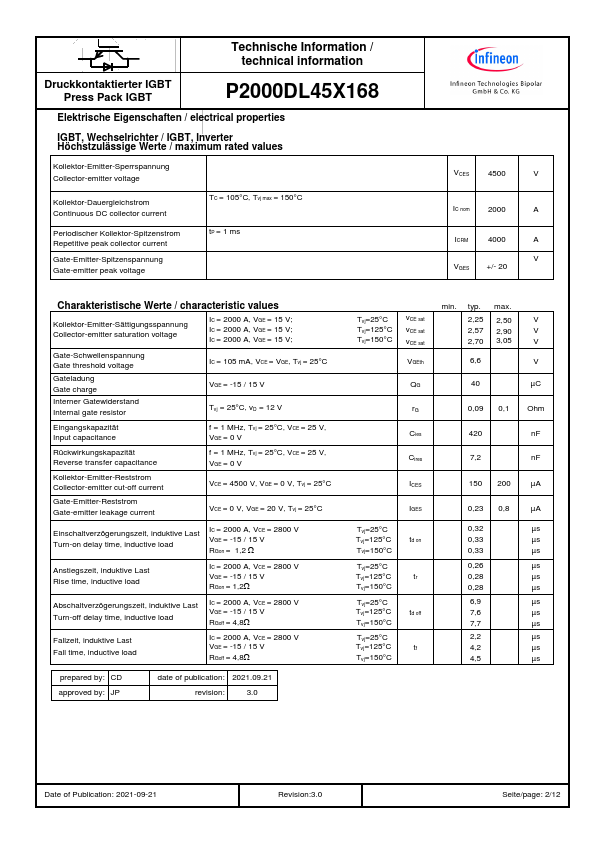

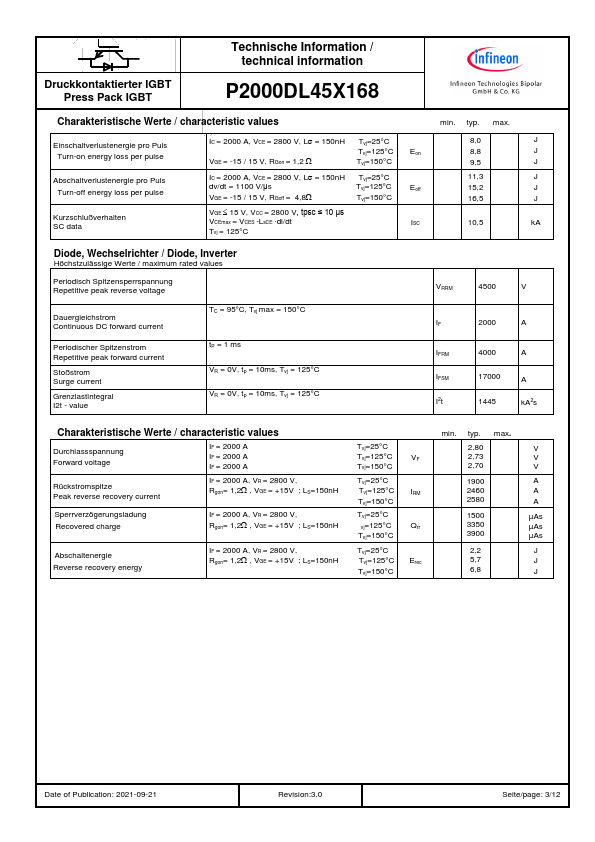

Additional preview pages of the P2000DL45X168 datasheet.

📁 Similar Datasheet

  • P2000D - Silicon Rectifier Diodes (Diotec)
  • P2000D - Standard silicon rectifier diodes (Semikron)
  • P2000DTL - Standard Recovery Rectifier Diodes (Diotec)
  • P2000A - Silicon Rectifier Diodes (Diotec)
  • P2000A - Standard silicon rectifier diodes (Semikron)
  • P2000AA61L - SIDACtor Device (Littelfuse)
  • P2000ATL - Standard Recovery Rectifier Diodes (Diotec)
  • P2000B - Silicon Rectifier Diodes (Diotec)
  • P2000B - Standard silicon rectifier diodes (Semikron)
  • P2000BTL - Standard Recovery Rectifier Diodes (Diotec)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text
Druckkontaktierter IGBT Press Pack IGBT Technische Information / technical information P2000DL45X168 Key Parameters IGBT VCES INOM ICRM Diode VRRM IF IFRM 4500 V 2000 A 4000 A 04(05T00C0=AV65 °C) 3570A 2000A (TC=55°C) 4000A Merkmale  Druckkontaktierter IGBT mit integrierter Freilaufdiode  Stabiler Kurzschluss im Fehlerfall  Hohe dynamische Robustheit  Hohe Kurzschlussrobustheit  Niedriges VCEsat  Trench IGBT 3 Features  Press Pack IGBT with integrated Freewheeling Diode  Long term Short on Fail behavior  High dynamic robustness  High short-circuit capability  Low VCEsat  Trench IGBT 3 Typische Anwendungen  Hochleistungsumrichter  Mittelspannungsantriebe  Modulare Multi- Level Umrichter MMC für HGÜ und Kompensationsanlagen  DC Leistungsschalter Typical Applicatio
