PN0404 - Power-Transistor

Product Overview

Infineon

📥 Download Datasheet

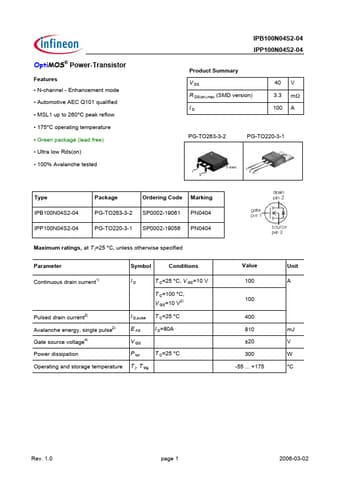

PN0404 Power-Transistor by Infineon - Datasheet Preview — Datasheet preview – PN0404

Datasheet Details

Part number	PN0404
Manufacturer	Infineon
File Size	150.58 KB
Description	Power-Transistor
Datasheet	PN0404 Datasheet
Additional preview pages of the PN0404 datasheet.

Product details

Description

and charts stated herein.

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPB100N04S2-04 IPP100N04S2-04 Product Summary V DS R DS(on),max (SMD version) ID 40 V 3.3 mΩ 100 A PG-TO263-3-2 PG-TO220-3-1 Type IPB100N04S2-04 IPP100N04S2-04 Package Ordering Code Marking PG-TO263-3-2 SP0002-19061 PN0404 PG-TO220-3-1 SP.
