S26KL256S - 256Mb (32MB) HYPER FLASH

Download the S26KL256S datasheet PDF. This datasheet also covers the S26KL512S variant, as both devices belong to the same 256mb (32mb) hyper flash family and are provided as variant models within a single manufacturer datasheet.

General Description

1.1 DDR center aligned read strobe (DCARS) functionality 7 1.2 Error detection and correction functionality 7 2 Connection diagram10 2.1 FBGA 24-ball 5 × 5 array footprint 10 3 Signal description 11 4 HYPERBUS™ protocol

Key Features

  • 3.0 V I/O, 11 bus signals - Single ended clock.
  • 1.8 V I/O, 12 bus signals - Differential clock (CK, CK#).
  • Chip Select (CS#).
  • 8-bit data bus (DQ[7:0]).
  • Read-write data strobe (RWDS) -.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S26KL512S-Infineon.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

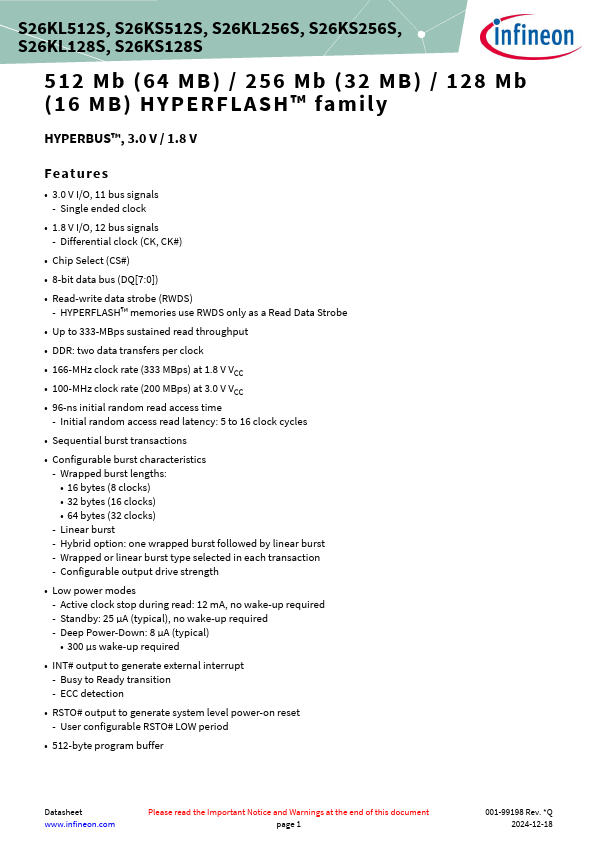

S26KL512S, S26KS512S, S26KL256S, S26KS256S, S26KL128S, S26KS128S 512 Mb (64 MB) / 256 Mb (32 MB) / 128 Mb (16 MB) HYPERFLASH™ family HYPERBUS™, 3.0 V / 1.8 V Features • 3.0 V I/O, 11 bus signals - Single ended clock • 1.8 V I/O, 12 bus signals - Differential clock (CK, CK#) • Chip Select (CS#) • 8-bit data bus (DQ[7:0]) • Read-write data strobe (RWDS) - HYPERFLASH™ memories use RWDS only as a Read Data Strobe • Up to 333-MBps sustained read throughput • DDR: two data transfers per clock • 166-MHz clock rate (333 MBps) at 1.8 V VCC • 100-MHz clock rate (200 MBps) at 3.
