SGB10N60 - Fast S-IGBT

SGB10N60 Description

www.DataSheet4U.com SGP10N60 SGB10N60, SGW10N60 Fast S-IGBT in NPT-technology * 75% lower Eoff compared to previous generation combined wit.

SGB10N60 Applications

* offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability C G E Type SGP10N60 SGB10N60 SGW10N60 VCE IC VCE(sat) Tj Package 600V 10A 2.2V 150°C TO-220AB TO-263AB TO-247AC Maximum Ratings Parameter Collector-emitter voltage

📥 Download Datasheet

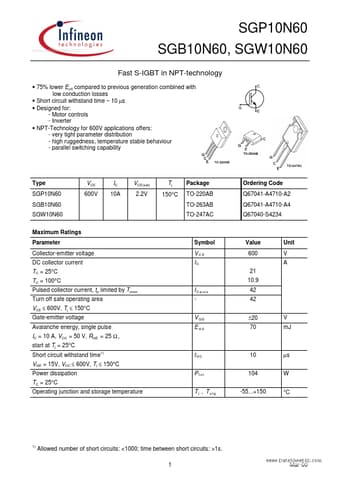

Preview of SGB10N60 PDF

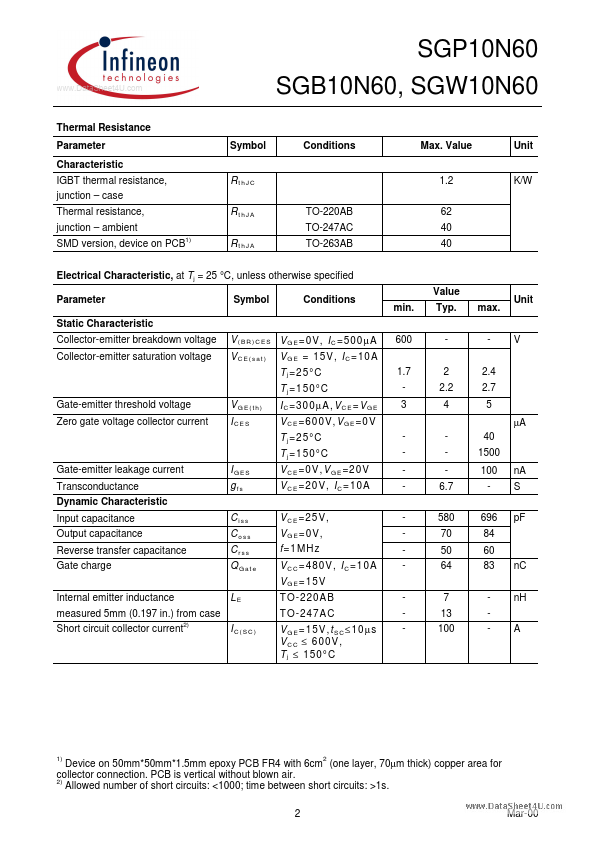

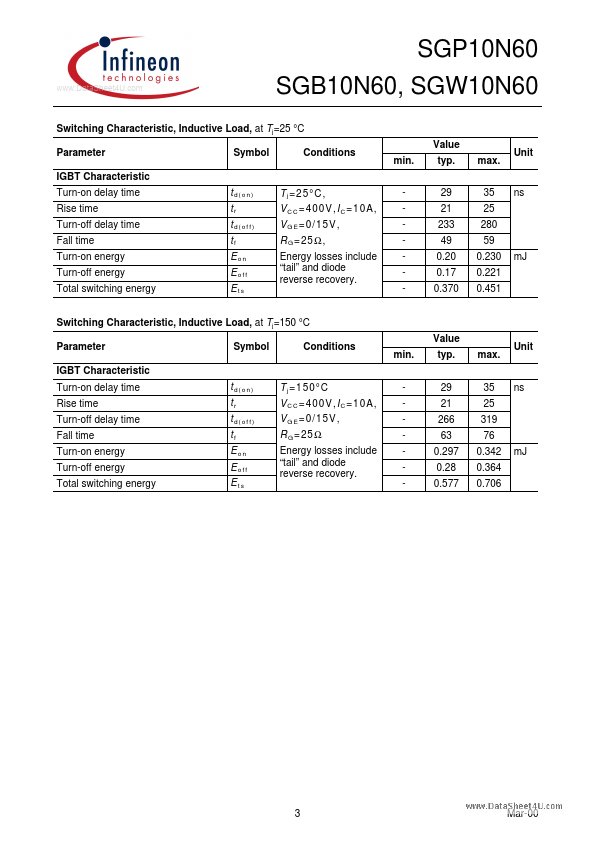

datasheet Preview Page 2 datasheet Preview Page 3
