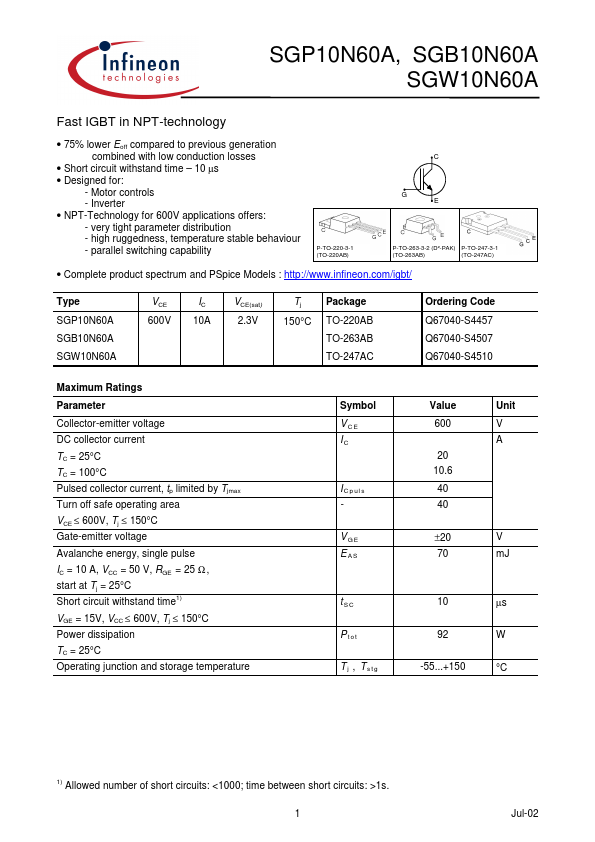

SGB10N60A
SGP10N60A, SGB10N60A SGW10N60A
Fast IGBT in NPT-technology
- 75% lower Eoff pared to previous generation bined with low conduction losses
- Short circuit withstand time
- 10 µs
- Designed for:
- Motor controls
- Inverter
- NPT-Technology for 600V applications offers:
- very tight parameter distribution
- high ruggedness, temperature stable behaviour
- parallel switching capability
P-TO-220-3-1 (TO-220AB)
P-TO-263-3-2 (D²-PAK) P-TO-247-3-1
(TO-263AB)
(TO-247AC)
- plete product spectrum and PSpice Models : http://.infineon./igbt/
Type SGP10N60A SGB10N60A SGW10N60A
VCE(sat)
Tj
Package
600V 10A
2.3V
150°C TO-220AB
TO-263AB
TO-247AC
Ordering Code Q67040-S4457 Q67040-S4507 Q67040-S4510
Maximum Ratings
Parameter
Collector-emitter voltage DC collector current TC = 25°C TC = 100°C Pulsed collector current, tp limited by Tjmax Turn off safe operating area VCE ≤ 600V, Tj ≤ 150°C Gate-emitter voltage Avalanche energy, single pulse IC = 10 A, VCC = 50 V, RGE = 25...
