SGP10N60 Fast S-IGBT

Infineon

Description

www.DataSheet4U.com SGP10N60 SGB10N60, SGW10N60 Fast S-IGBT in NPT-technology * 75% lower Eoff compared to previous generation combined wit.

📥 Download Datasheet

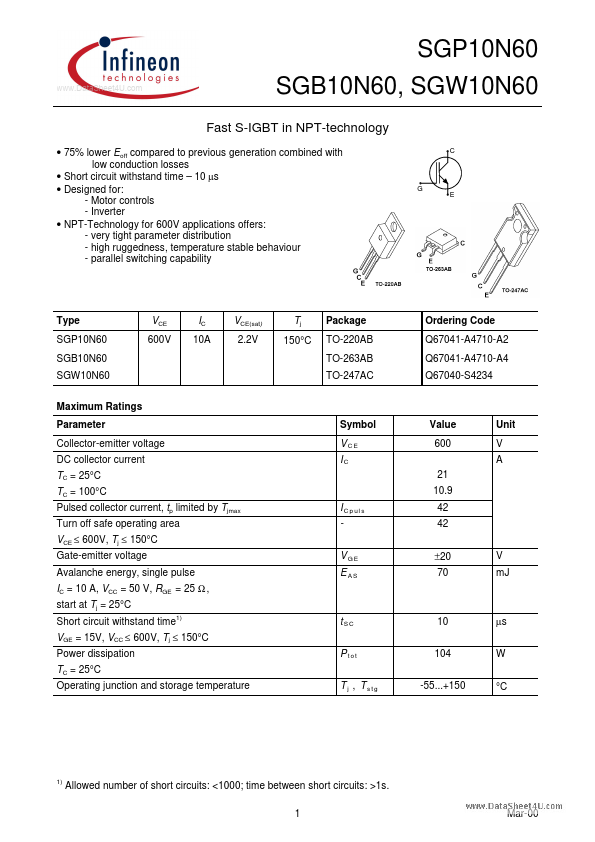

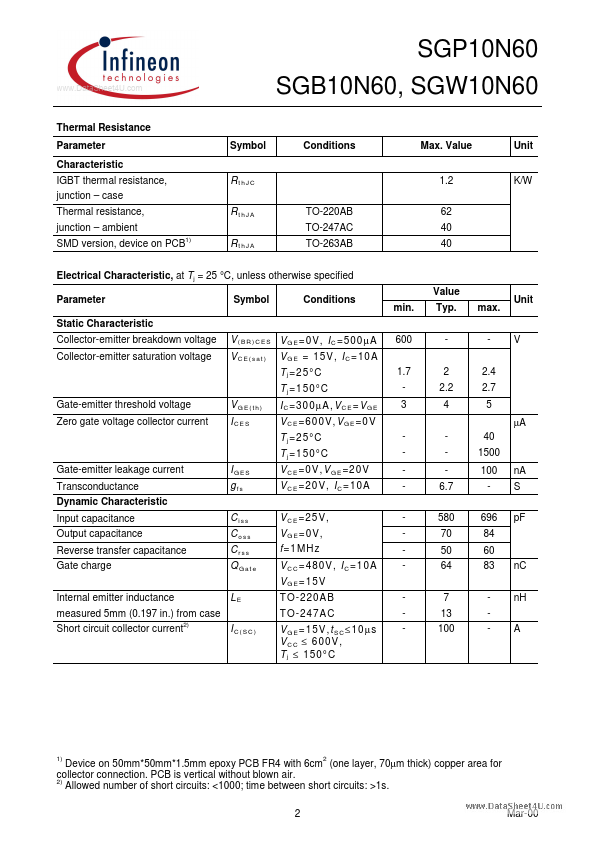

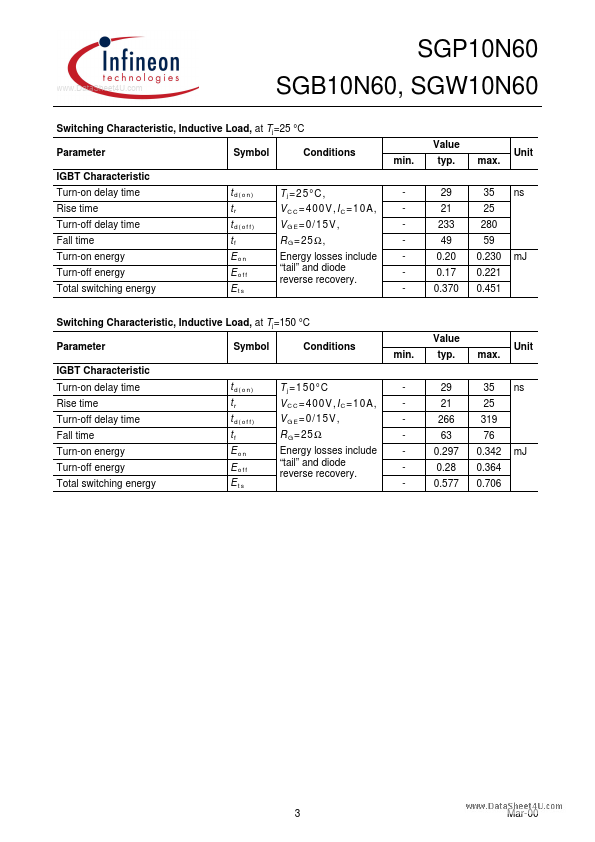

SGP10N60 Datasheet Preview — Preview of SGP10N60 PDF

Datasheet Specifications

Part number: SGP10N60
Manufacturer: Infineon ↗
File Size: 297.47 KB
Datasheet: SGP10N60-Infineon.pdf
Description: Fast S-IGBT

Applications

* offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability C G E Type SGP10N60 SGB10N60 SGW10N60 VCE IC VCE(sat) Tj Package 600V 10A 2.2V 150°C TO-220AB TO-263AB TO-247AC Maximum Ratings Parameter Collector-emitter voltage
