SGP10N60A Fast IGBT

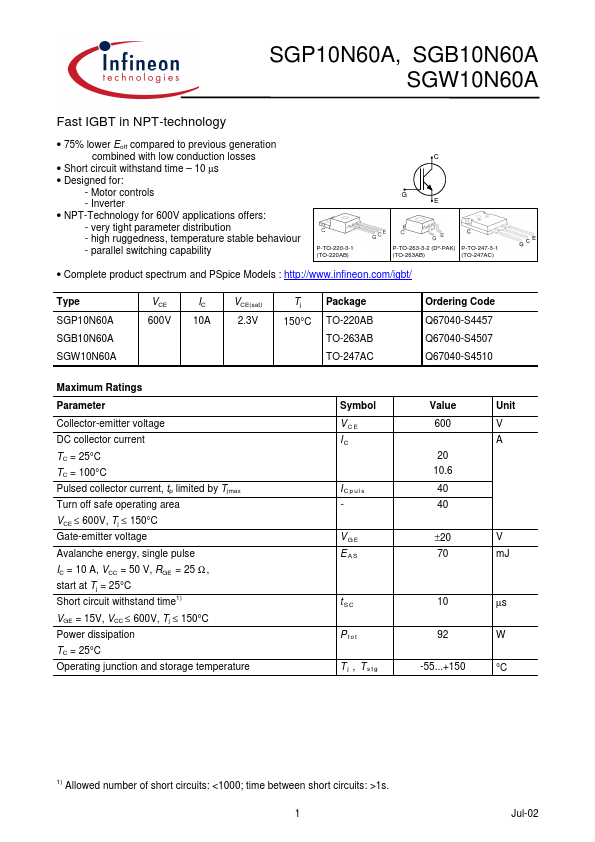

📥 Download Datasheet Datasheet Preview Page 1

Description

SGP10N60A, SGB10N60A SGW10N60A Fast IGBT in NPT-technology * 75% lower Eoff compared to previous generation combined with low conduction los.

📥 Download Datasheet

Preview of SGP10N60A PDF

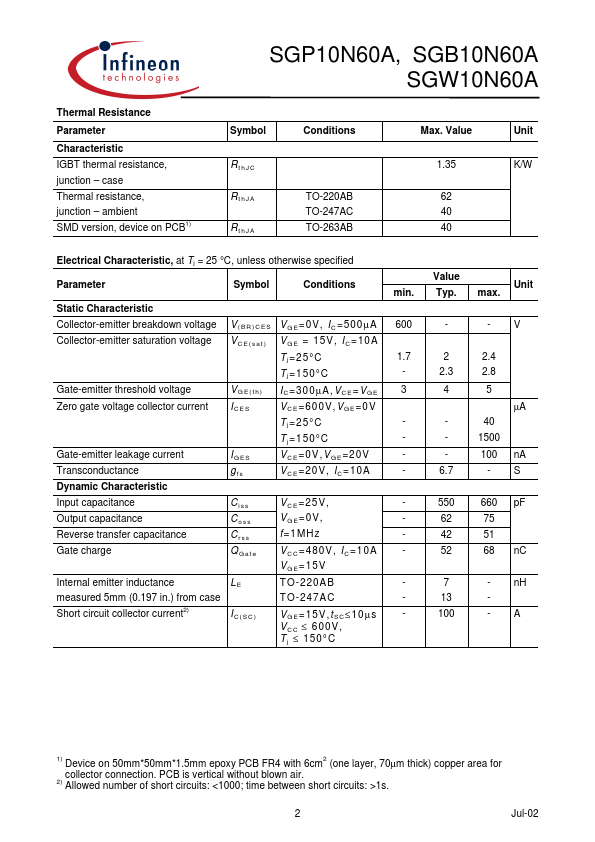

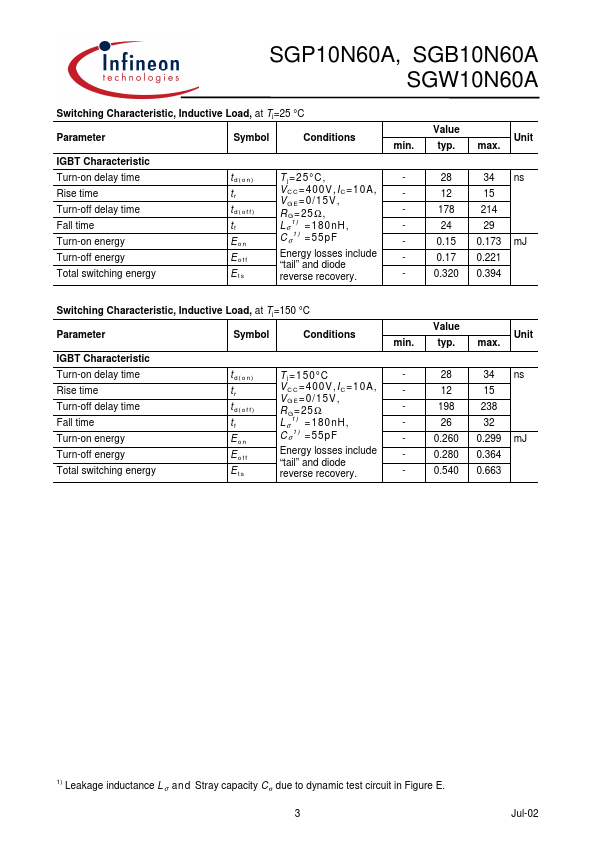

datasheet Preview Page 2 datasheet Preview Page 3

Applications

* offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability P-TO-220-3-1 (TO-220AB) C G E P-TO-263-3-2 (D²-PAK) P-TO-247-3-1 (TO-263AB) (TO-247AC)
* Complete product spectrum and PSpice Models : http://www. infineon. com/igb
