SP40T - Tire Pressure Monitoring Sensor

Name: SP40T
SKU: SP40T-1563536

Infineon

📥 Download Datasheet

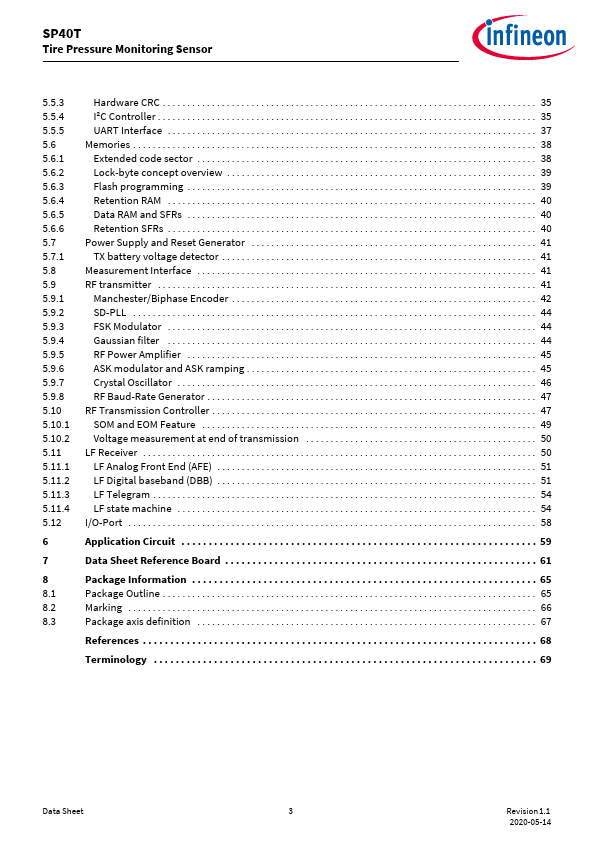

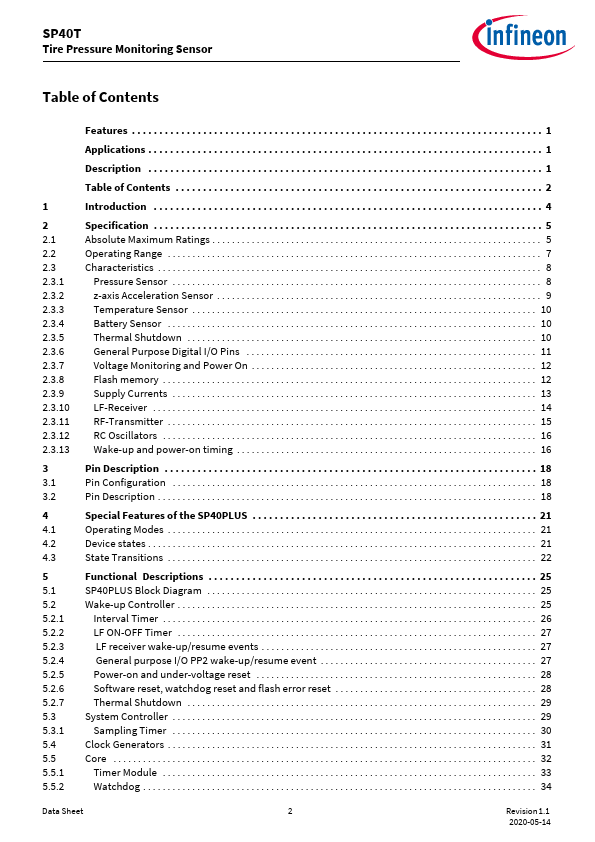

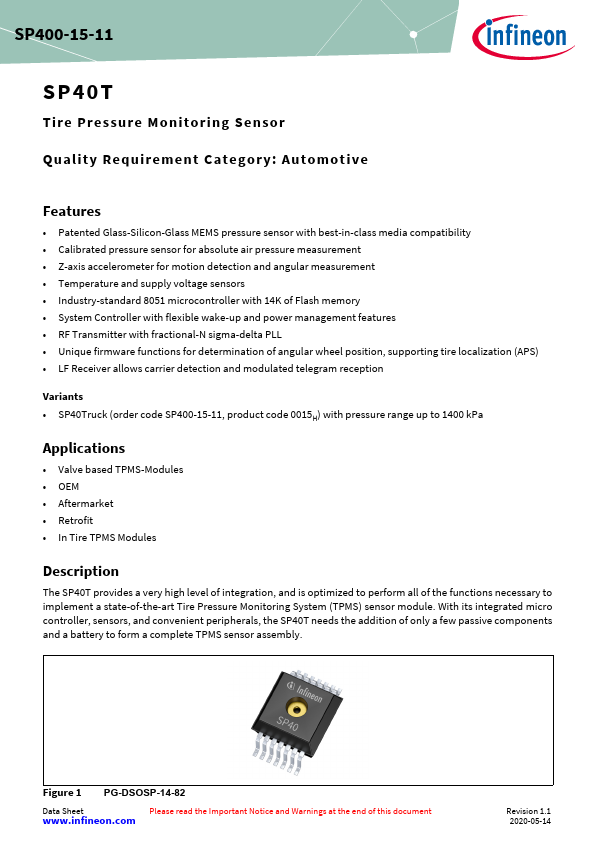

SP40T Datasheet Preview — Preview of SP40T PDF

Datasheet Details

Part number	SP40T
Manufacturer	Infineon
File Size	1.70 MB
Description	Tire Pressure Monitoring Sensor
Datasheet	SP40T-Infineon.pdf

SP40T Product details

Description

The SP40T provides a very high level of integration, and is optimized to perform all of the functions necessary to implement a state-of-the-art Tire Pressure Monitoring System (TPMS) sensor module.

Features

Patented Glass-Silicon-Glass MEMS pressure sensor with best-in-class media compatibility.
Calibrated pressure sensor for absolute air pressure measurement.
Z-axis accelerometer for motion detection and angular measurement.
Temperature and supply voltage sensors.
Industry-standard 8051 microcontroller with 14K of Flash memory.
System Controller with flexible wake-up and power management features.
RF Transmitter with fractional-N sigm.
