T1900N Datasheet - Infineon

T1900N Phase Control Thyristor

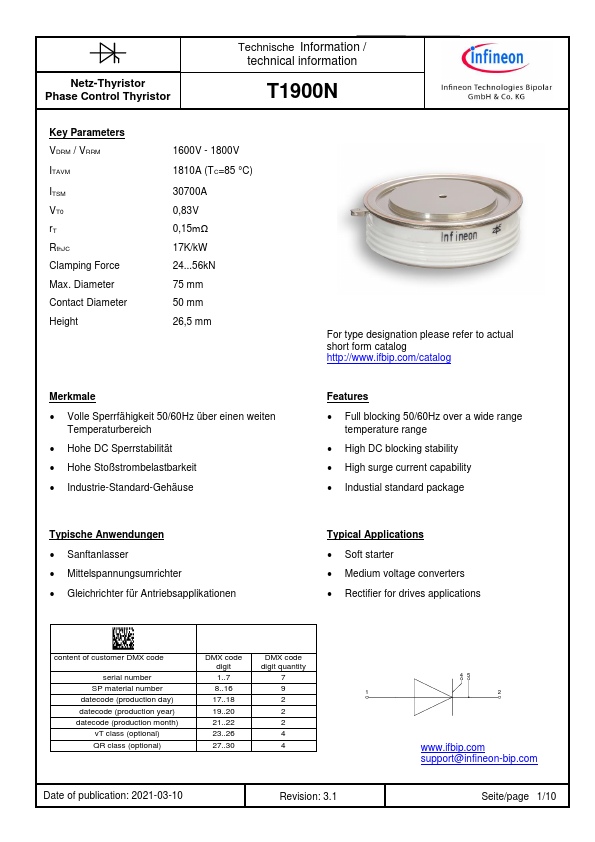

Netz-Thyristor Phase Control Thyristor Technische Information / technical information T1900N Key Parameters VDRM / VRRM ITAVM ITSM VT0 rT RthJC Clamping Force Max. Diameter Contact Diameter Height 1600V - 1800V 1810A (TC=85 °C) 30700A 0,83V 0,15mΩ 17K/kW 2456kN 75 mm 50 mm 26,5 mm For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich Hohe DC Sperrstabilität Hohe .

T1900N Features

* Full blocking 50/60Hz over a wide range temperature range

* High DC blocking stability

* High surge current capability

* Industial standard package Typische Anwendungen

* Sanftanlasser

* Mittelspannungsumrichter

* Gleichrichter für Antriebsapplikationen Typical Applic

T1900N Datasheet (411.06 KB)

Preview of T1900N PDF

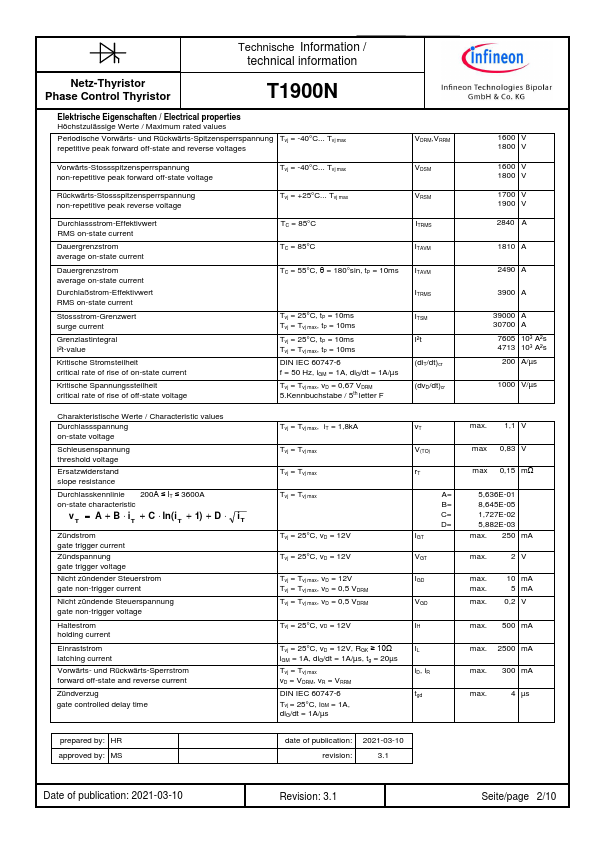

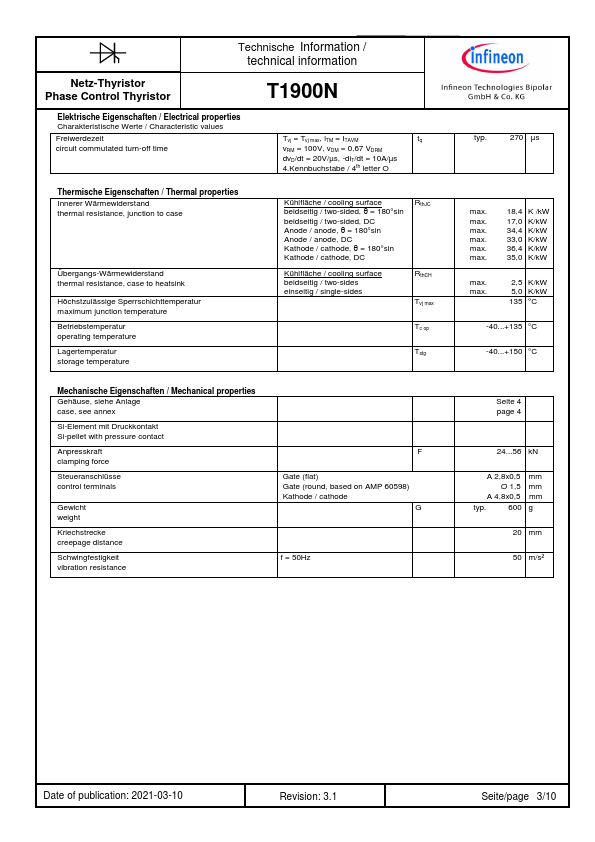

T1900N Datasheet Preview Page 2 T1900N Datasheet Preview Page 3

Datasheet Details

Part number:

T1900N

Manufacturer:

Infineon ↗

File Size:

411.06 KB

Description:

Phase control thyristor.
