T3401N Datasheet - Infineon

T3401N, Phase Control Thyristor

Netz-Thyristor Phase Control Thyristor Technische Information / technical information T3401N Key Peanranmdaetteenrs VDRM / VRRM ITAVM ITSM vT0 rT Rt.

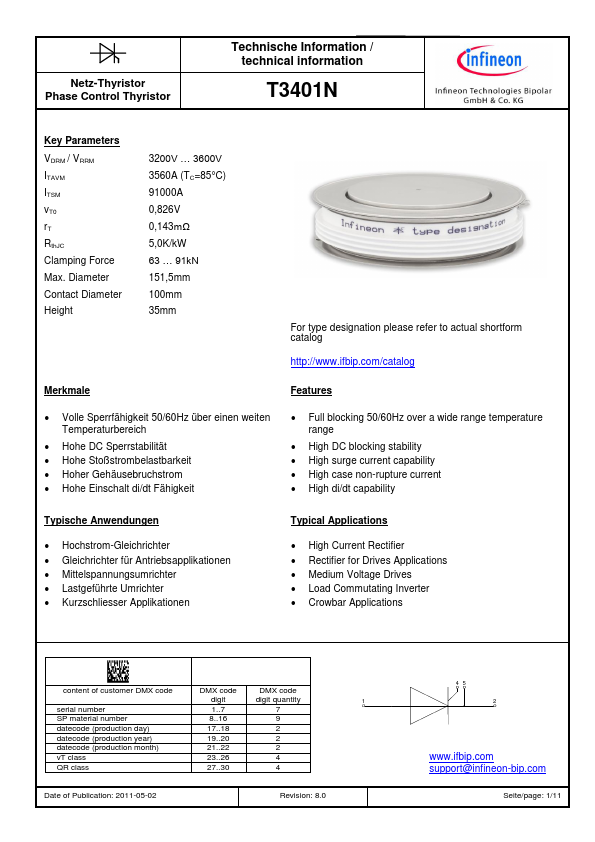

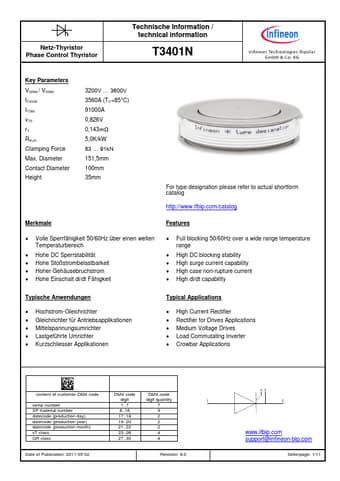

datasheet Preview Page 1 from Datasheet4u.com

T3401N-Infineon.pdf

T3401N Datasheet Preview — Preview of T3401N PDF

Datasheet Details

Part number:

T3401N

Manufacturer:

Infineon ↗

File Size:

265.22 KB

Description:

Phase Control Thyristor

Features

* Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich
* Hohe DC Sperrstabilität
* Hohe Stoßstrombelastbarkeit
* Hoher Gehäusebruchstrom
* Hohe Einschalt di/dt Fähigkeit
* Full blocking 50/60Hz over a wide range temperature range
* High DC blocking stability

Applications

* High Current Rectifier
* Rectifier for Drives Applications
* Medium Voltage Drives
* Load Commutating Inverter
* Crowbar Applications content of customer DMX code DMX code DMX code digit digit quantity 1 serial number 1..7 7 SP material number 8..16 9 datecode (pro
