TLD2131-3EP Datasheet PDF (triple channel high-side driver)

TLD2131-3EP - triple channel high-side driver

Description

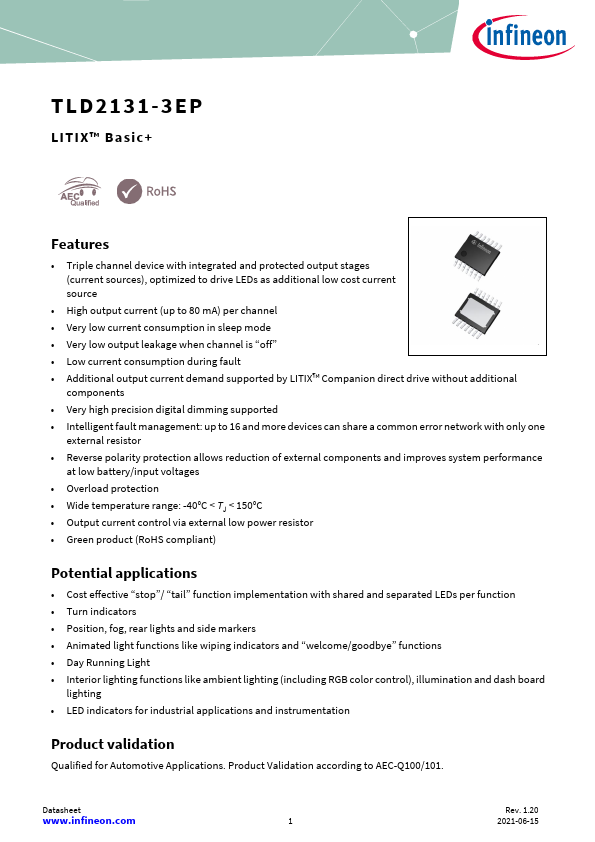

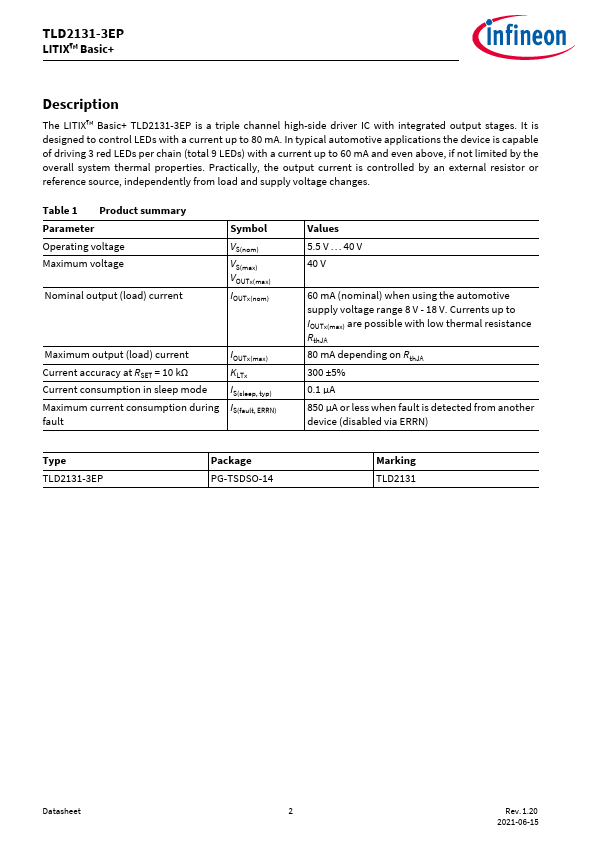

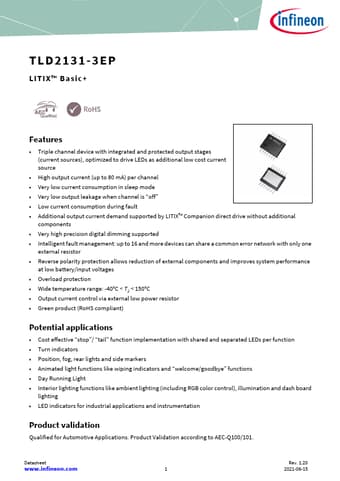

The LITIX™ Basic+ TLD2131-3EP is a triple channel high-side driver IC with integrated output stages.

It is designed to control LEDs with a current up to 80 mA.

Features

Triple channel device with integrated and protected output stages (current sources), optimized to drive LEDs as additional low cost current source.
High output current (up to 80 mA) per channel.
Very low current consumption in sleep mode.
Very low output leakage when channel is “off”.
Low current consumption during fault.
Additional output current demand supported by LITIX™ Companion direct drive without additional components.
Very.

Datasheet Details

Part number	TLD2131-3EP
Manufacturer	Infineon
File Size	568.53 KB
Description	triple channel high-side driver
Datasheet	TLD2131-3EP Datasheet
Additional preview pages of the TLD2131-3EP datasheet.

📁 Similar Datasheet

TLD5S10AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S11AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S12AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S13AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S14AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S15AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S16AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S17AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S18AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S20AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

Full PDF Text Transcription

Click to expand full text

TLD2131-3EP LITIX™ Basic+ Features • Triple channel device with integrated and protected output stages (current sources), optimized to drive LEDs as additional low cost current source • High output current (up to 80 mA) per channel • Very low current consumption in sleep mode • Very low output leakage when channel is “off” • Low current consumption during fault • Additional output current demand supported by LITIX™ Companion direct drive without additional components • Very high precision digital dimming supported • Intelligent fault management: up to 16 and more devices can share a common error network with only one external resistor • Reverse polarity protection allows reduction of external components and improves system performance at low battery/input voltages • Overload protection •
