TLD2142-1EP Datasheet PDF (single channel high-side driver)

TLD2142-1EP - single channel high-side driver

Description

The LITIX™ Basic+ TLD2142-1EP is a single channel high-side driver IC with integrated output stage.

It is designed to control LEDs with a current up to 240 mA.

Features

Single channel device with integrated and protected output stage (current source), optimized to drive LEDs as additional low cost current source.
High output current (up to 240 mA).
Very low current consumption in sleep mode.
Very low output leakage when channel is “off”.
Low current consumption during fault.
Output currents’ control via external low power resistor.
Additional output current demand supported by LITIX™ Companion dire.

Datasheet Details

Part number	TLD2142-1EP
Manufacturer	Infineon
File Size	571.21 KB
Description	single channel high-side driver
Datasheet	TLD2142-1EP Datasheet

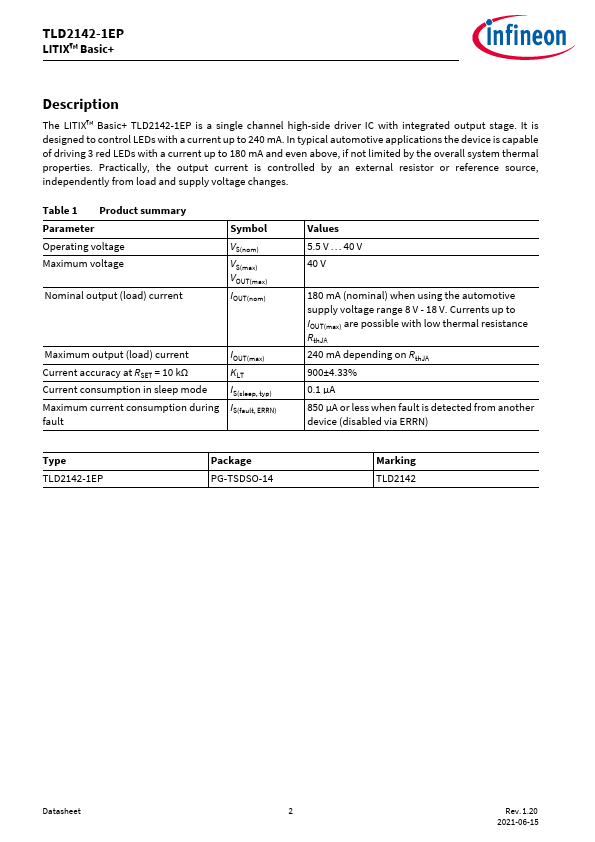

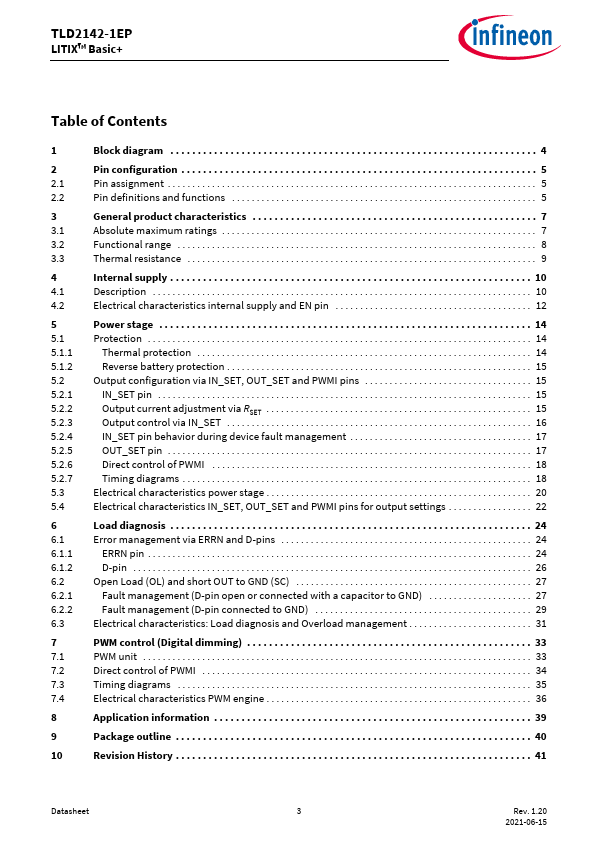

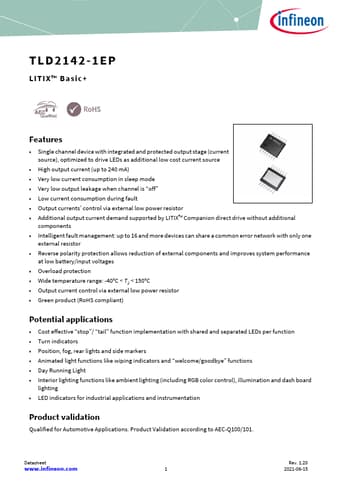

Additional preview pages of the TLD2142-1EP datasheet.

📁 Similar Datasheet

TLD5S10AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S11AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S12AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S13AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S14AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S15AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S16AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S17AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S18AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

TLD5S20AH - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

Full PDF Text Transcription

Click to expand full text

TLD2142-1EP LITIX™ Basic+ Features • Single channel device with integrated and protected output stage (current source), optimized to drive LEDs as additional low cost current source • High output current (up to 240 mA) • Very low current consumption in sleep mode • Very low output leakage when channel is “off” • Low current consumption during fault • Output currents’ control via external low power resistor • Additional output current demand supported by LITIX™ Companion direct drive without additional components • Intelligent fault management: up to 16 and more devices can share a common error network with only one external resistor • Reverse polarity protection allows reduction of external components and improves system performance at low battery/input voltages • Overload protection • Wi
