TLE8080EM Datasheet - Infineon

TLE8080EM Engine Management IC

The TLE8080EM is an engine management IC based on Infineon Smart Power Technology (SPT). It is protected by embedded protection functions and integrates a power supply, K-line, SPI, variable reluctance sensor interface and power stages to drive different loads in an engine management system. It prov.

TLE8080EM Features

* Supply 5 V (+/-2%), 250 mA

* K-line transceiver (ISO 9141)

* Serial Peripheral Interface (SPI)

* 4 low side driver for inductive loads with overtemperature and overcurrent protection and open load/short to GND in off diagnosis:

* 2 low side switches with max

TLE8080EM Datasheet (445.99 KB)

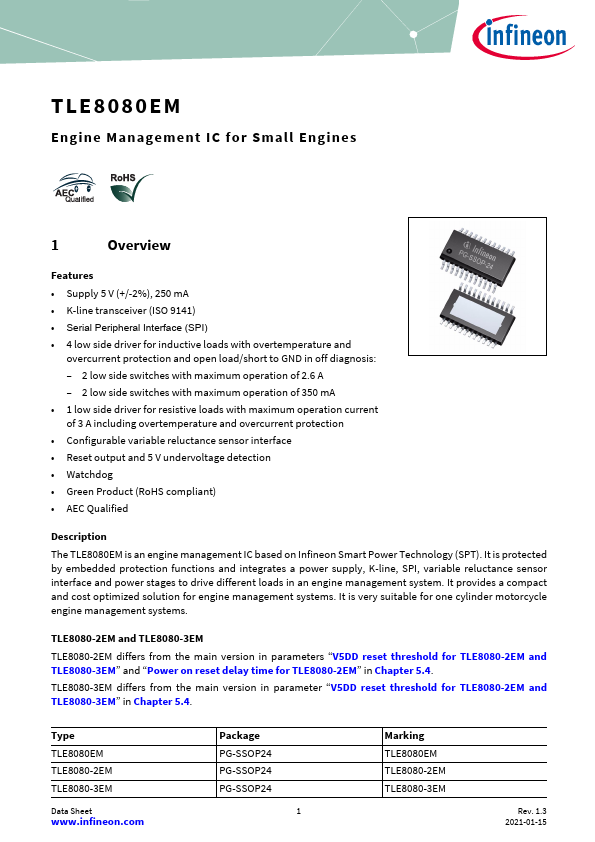

Preview of TLE8080EM PDF

Datasheet Details

Part number:

TLE8080EM

Manufacturer:

Infineon ↗

File Size:

445.99 KB

Description:

Engine management ic.

📁 Related Datasheet

TLE8088EM Engine Management (Infineon)

TLE8102SG Smart Dual Channel Powertrain Switch coreFLEX (Infineon Technologies)

TLE8104E Smart Quad Channel Powertrain Switch (Infineon Technologies)

TLE8108EM Smart 8-Channel Low Side Relay Driver (Infineon Technologies)

TLE8110ED Smart Multichannel Low Side Switch (Infineon)

TLE8110EE Smart Multichannel Low-Side Switch (Infineon Technologies)

TLE8201R Door Module Power (Infineon Technologies)

TLE8203E Mirror Power (Infineon Technologies)

TLE8209-2 SPI Programmable H-Bridge (Infineon Technologies)

TLE8209-2SA SPI Programmable H-Bridge (Infineon Technologies)

TAGS

TLE8080EM Engine Management Infineon

Image Gallery

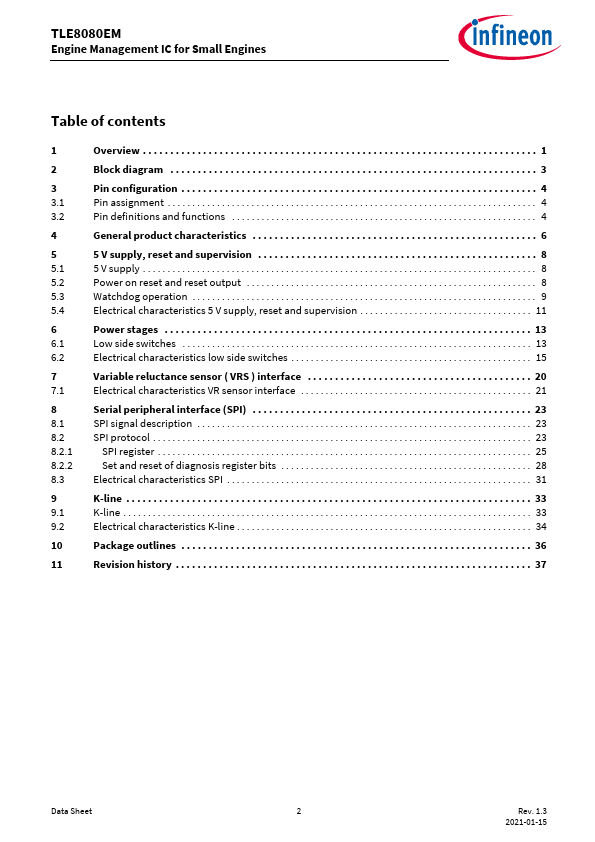

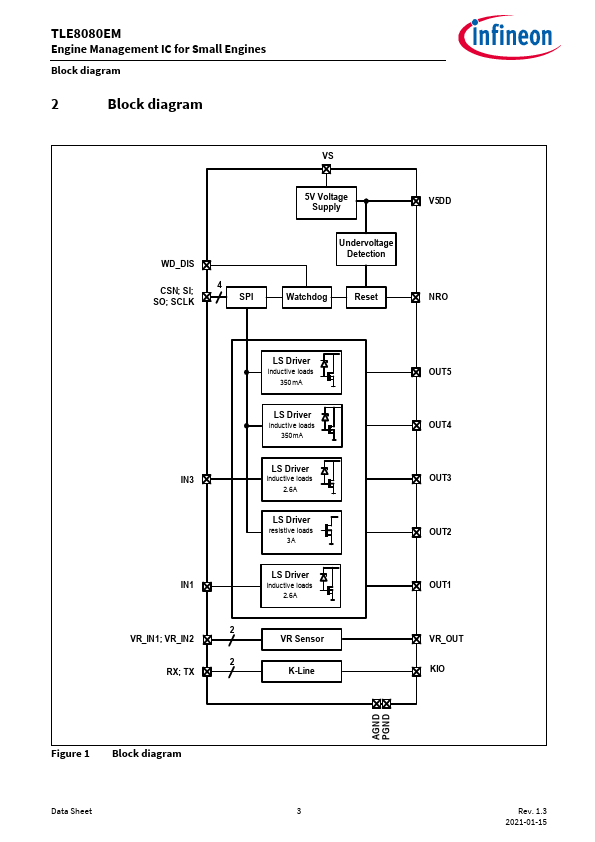

TLE8080EM Datasheet Preview Page 2 TLE8080EM Datasheet Preview Page 3
