TLE8457C Datasheet - Infineon

LIN Transceiver

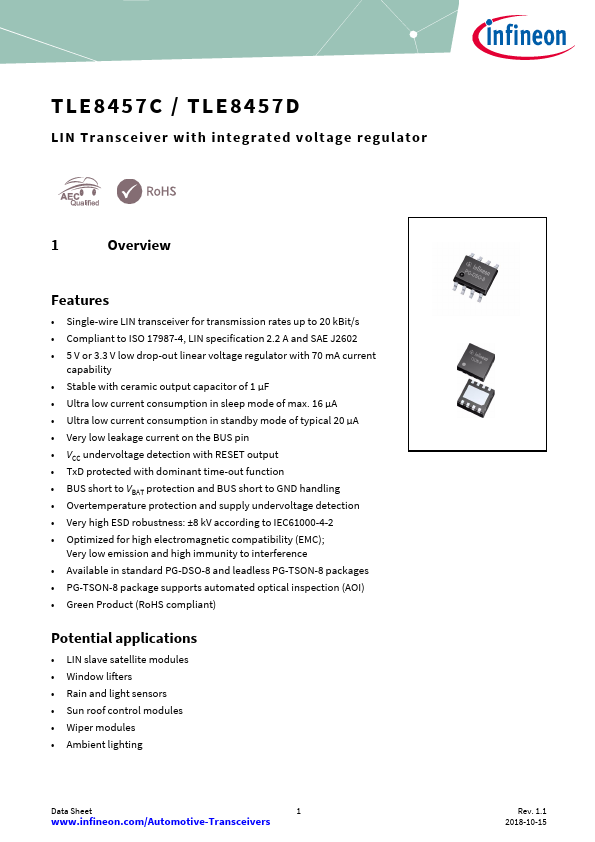

TLE8457C Features

* Single-wire LIN transceiver for transmission rates up to 20 kBit/s

* Compliant to ISO 17987-4, LIN specification 2.2 A and SAE J2602

* 5 V or 3.3 V low drop-out linear voltage regulator with 70 mA current capability

* Stable with ceramic output capacitor of 1 µF

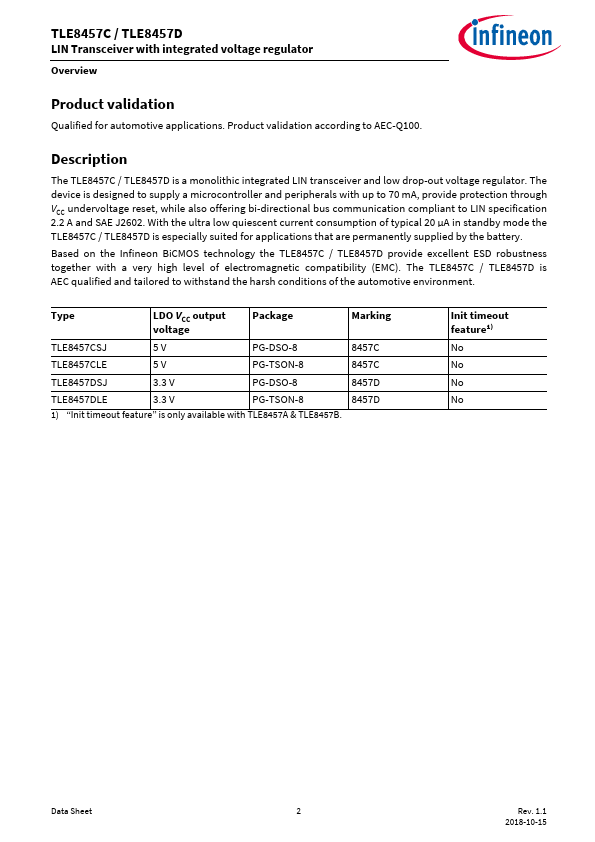

TLE8457C General Description

The TLE8457C / TLE8457D is a monolithic integrated LIN transceiver and low drop-out voltage regulator. The device is designed to supply a microcontroller and peripherals with up to 70 mA, provide protection through VCC undervoltage reset, while also offering bi-directional bus communication complian.

TLE8457C Datasheet (1.09 MB)
