TLE9272QXV33 - High-End System Basis Chip

Name: TLE9272QXV33
SKU: TLE9272QXV33-1459919

Infineon

📥 Download Datasheet

TLE9272QXV33 Datasheet Preview — Preview of TLE9272QXV33 PDF

Datasheet Details

Part number	TLE9272QXV33
Manufacturer	Infineon
File Size	1.52 MB
Description	High-End System Basis Chip
Datasheet	TLE9272QXV33-Infineon.pdf

TLE9272QXV33 Product details

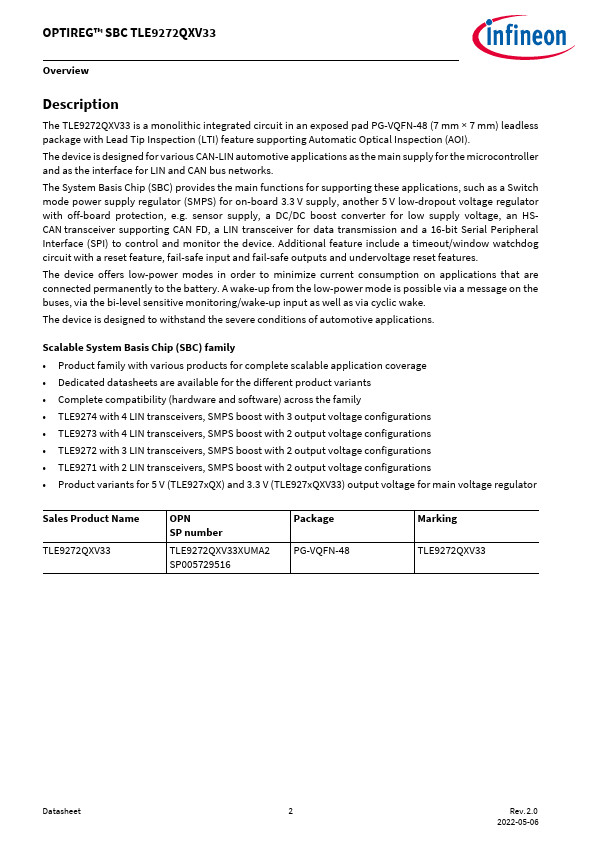

Description

The TLE9272QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48 (7 mm × 7 mm) leadless package with Lead Tip Inspection (LTI) feature supporting Automatic Optical Inspection (AOI).

Features

Very low quiescent current consumption in SBC Stop and Sleep mode.
SMPS 750 mA (DC/DC buck) voltage regulator 3.3 V to supply high current load with high efficiency.
DC/DC boost converter for low battery supply voltage.
Low-drop voltage regulator 5 V/100 mA, protected for off-board usage.
High-speed CAN FD transceiver compliant to ISO11898-2:2016 supporting communication up to 5 Mbps.
Up to 3 LIN transceivers LIN2.2, SAE J2602 with programma.
