TLE9371SJ - CAN signal improvement transceiver

Name: TLE9371SJ
SKU: TLE9371SJ-1578137

Infineon

📥 Download Datasheet

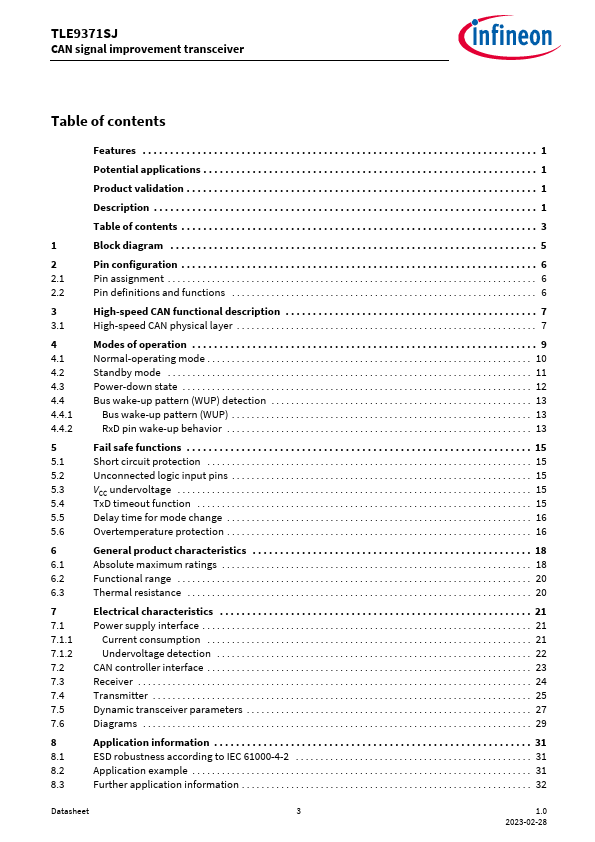

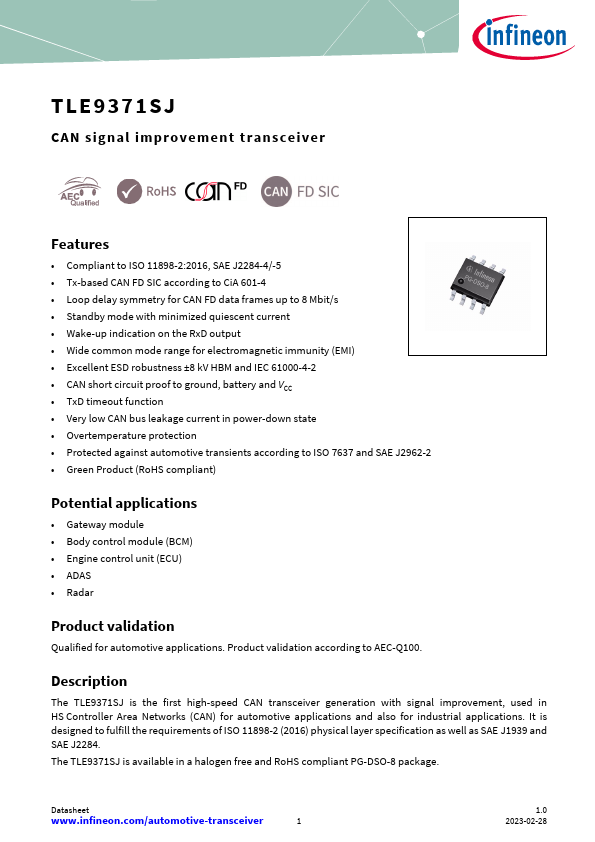

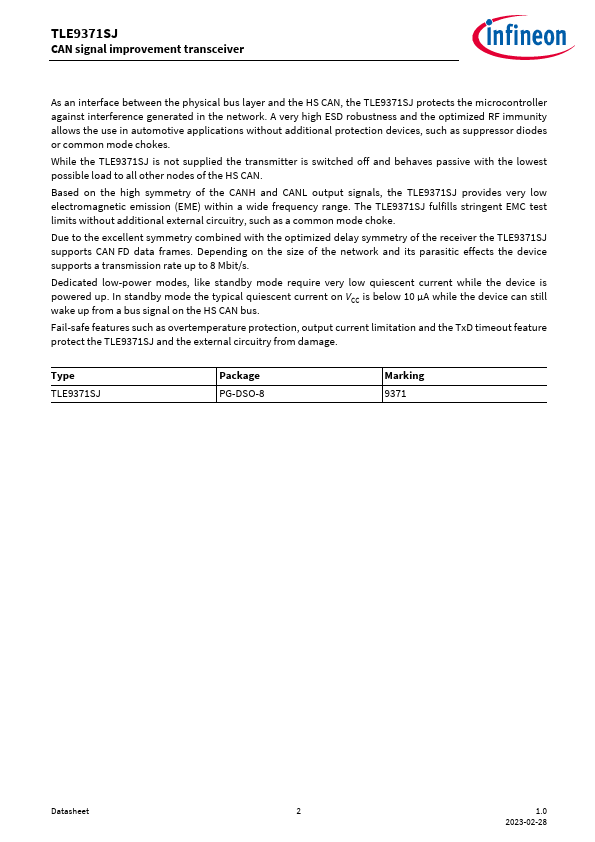

TLE9371SJ Datasheet Preview — Preview of TLE9371SJ PDF

Datasheet Details

Part number	TLE9371SJ
Manufacturer	Infineon
File Size	905.23 KB
Description	CAN signal improvement transceiver
Datasheet	TLE9371SJ-Infineon.pdf

TLE9371SJ Product details

Description

The TLE9371SJ is the first high-speed CAN transceiver generation with signal improvement, used in HS Controller Area Networks (CAN) for automotive applications and also for industrial applications.

Features

Compliant to ISO 11898-2:2016, SAE J2284-4/-5.
Tx-based CAN FD SIC according to CiA 601-4.
Loop delay symmetry for CAN FD data frames up to 8 Mbit/s.
Standby mode with minimized quiescent current.
Wake-up indication on the RxD output.
Wide common mode range for electromagnetic immunity (EMI).
Excellent ESD robustness ±8 kV HBM and IEC 61000-4-2.
CAN short circuit proof to ground, battery and VCC.
TxD timeout functi.
