TLE94003EP

Protected triple half-bridge driver

TLE94003EP Features

* Three half bridge power outputs

* Very low power consumption in sleep mode

* 3.3V / 5V compatible inputs with hysteresis

* All outputs with overload and short circuit protection

* Direct interface for control and diagnosis

* Overtemperature protectio

TLE94003EP General Description

The TLE94003EP is a protected triple half-bridge driver designed especially for automotive motion control applications such as side mirror x-y adjustment. It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface. The half .

TLE94003EP Datasheet (674.59 KB)

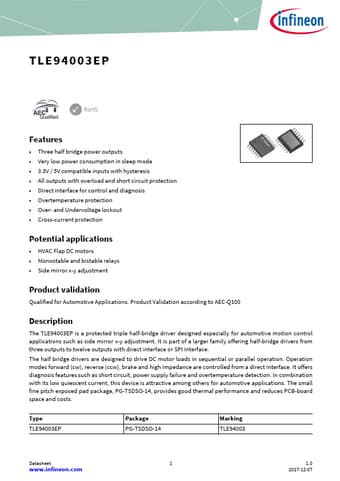

Preview of TLE94003EP PDF

Datasheet Details

Part number:

TLE94003EP

Manufacturer:

Infineon ↗

File Size:

674.59 KB

Description:

Protected triple half-bridge driver.
