TLE9862QXA40 Microcontroller

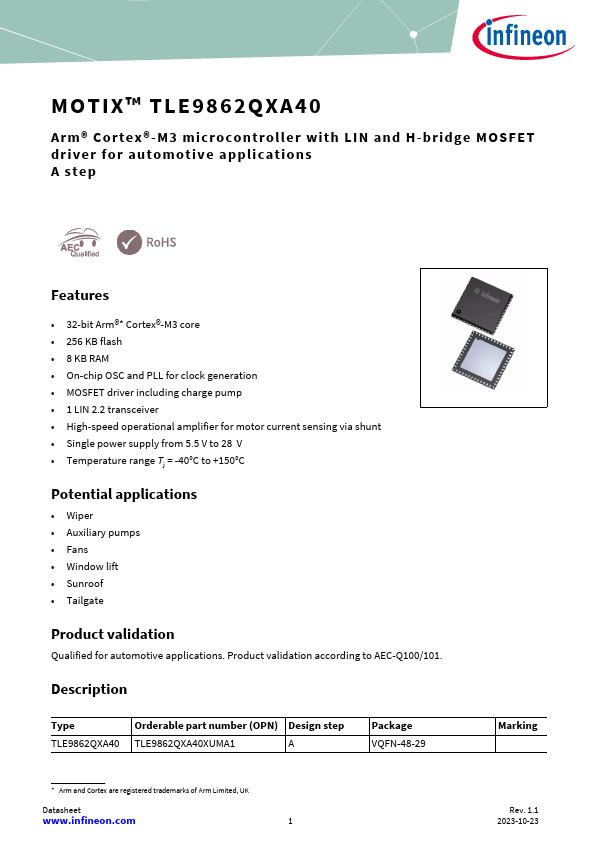

📥 Download Datasheet Datasheet Preview Page 1

Description

MOTIX™ TLE9862QXA40 Arm® Cortex®-M3 microcontroller with LIN and H-bridge MOSFET driver for automotive applications A step .
Type Orderable part number (OPN) Design step TLE9862QXA40 TLE9862QXA40XUMA1 A Package VQFN-48-29. Arm and Cortex are registered trademarks.

📥 Download Datasheet

Preview of TLE9862QXA40 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 32-bit Arm®
* Cortex®-M3 core
* 256 KB flash
* 8 KB RAM
* On-chip OSC and PLL for clock generation
* MOSFET driver including charge pump
* 1 LIN 2.2 transceiver
* High-speed operational amplifier for motor current sensing via shunt
