TLF35584 - Functional Safety PMIC

Infineon

📥 Download Datasheet

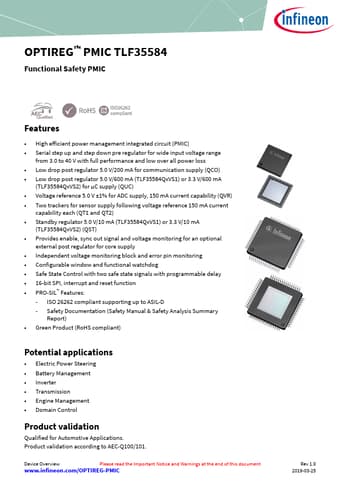

TLF35584 Datasheet Preview — Preview of TLF35584 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TLF35584
Manufacturer: Infineon ↗
File Size: 690.52 KB
Datasheet: TLF35584-Infineon.pdf
Description: Functional Safety PMIC

TLF35584 Product details

Description

Description The

Features

High efficient power management integrated circuit (PMIC).
Serial step up and step down pre regulator for wide input voltage range from 3.0 to 40 V with full performance and low over all power loss.
Low drop post regulator 5.0 V/200 mA for communication supply (QCO).
Low drop post regulator 5.0 V/600 mA (TLF35584QxVS1) or 3.3 V/600 mA (TLF35584QxVS2) for µC supply (QUC).
Voltage reference 5.0 V ±1% for ADC supply, 150 mA current capability (QVR).
