TLF35585QVS01 - Functional safety PMIC

Description

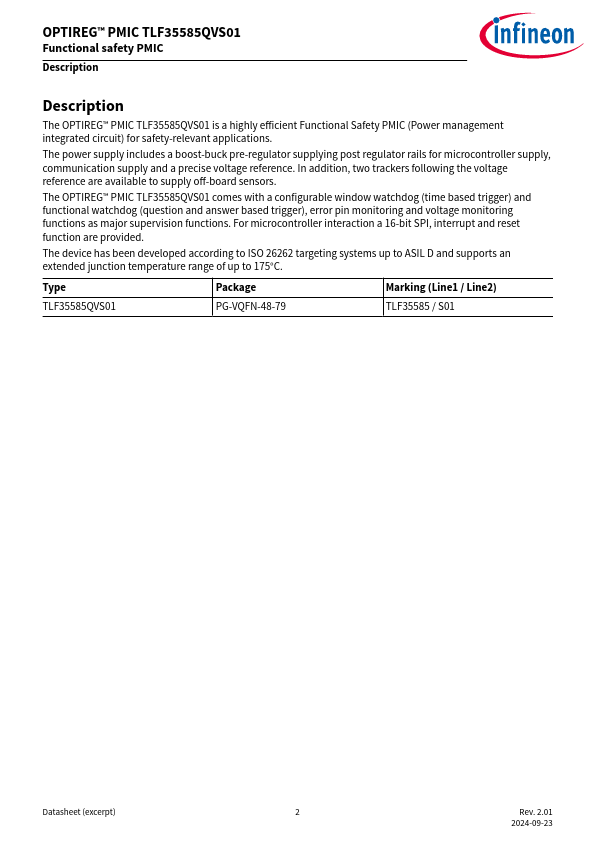

The OPTIREG™ PMIC TLF35585QVS01 is a highly efficient Functional Safety PMIC (Power management integrated circuit) for safety-relevant applications.

Features

  • High efficient power management integrated circuit (PMIC).
  • Serial step up and step down pre-regulator for wide input voltage range from 3.0 V to 40 V with full performance and low overall power loss.
  • Low drop post regulator 5.0 V/600 mA for microcontroller main supply (QUC).
  • Low drop post regulator 5.0 V/200 mA for communication supply (QCO).
  • Voltage reference (±1%) 5.0 V/150 mA for ADC supply (QVR).
  • Two trackers for sensor supply following.

📥 Download Datasheet

Datasheet preview – TLF35585QVS01

Datasheet Details

Part number TLF35585QVS01
Manufacturer Infineon
File Size 533.37 KB
Description Functional safety PMIC
Datasheet download datasheet TLF35585QVS01 Datasheet
Additional preview pages of the TLF35585QVS01 datasheet.

📁 Similar Datasheet

  • TLF15562F1 - TLF15562F1 (ETC)
  • TLF15644F1 - Data Travo Flyback (ETC)
  • TLF1963 - Low Dropout Linear Voltage Post Regulator (Infineon Technologies)
  • TLF4277 - Low Drop Out Linear Voltage Regulator (Infineon Technologies)
  • TLF4277-2 - Low Drop Out Linear Voltage Regulator (Infineon Technologies)
  • TLF4949 - 5V Low Drop Out Linear Voltage Regulator (Infineon Technologies)
  • TLF4G503F - Data Travo Flyback (ETC)
  • TLF4N052 - Data Travo Flyback (ETC)
  • TLF50201EL - 2.2 MHz Step-Down Regulator (Infineon Technologies)
  • TLF50211EL - 2.2 MHz Step-Down Regulator (Infineon Technologies)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

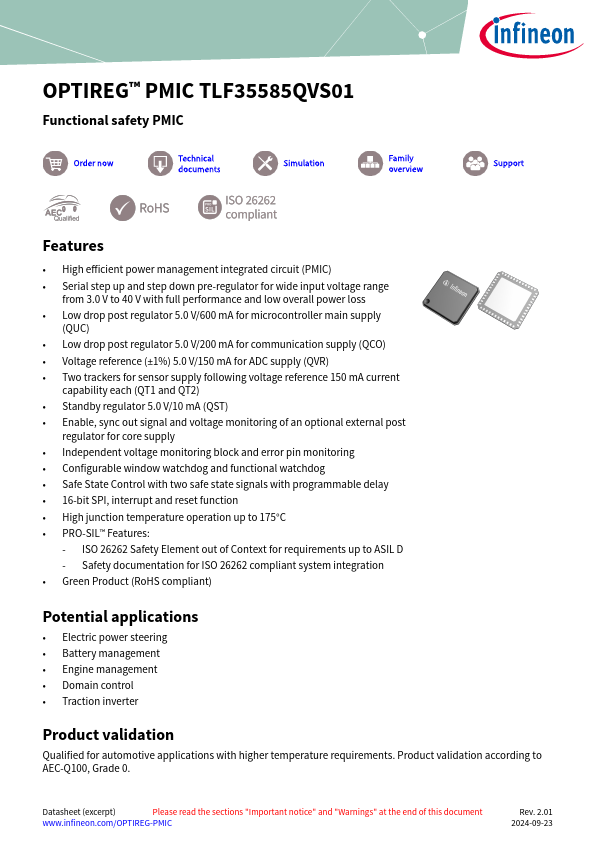

OPTIREG™ PMIC TLF35585QVS01 Functional safety PMIC Features • High efficient power management integrated circuit (PMIC) • Serial step up and step down pre-regulator for wide input voltage range from 3.0 V to 40 V with full performance and low overall power loss • Low drop post regulator 5.0 V/600 mA for microcontroller main supply (QUC) • Low drop post regulator 5.0 V/200 mA for communication supply (QCO) • Voltage reference (±1%) 5.0 V/150 mA for ADC supply (QVR) • Two trackers for sensor supply following voltage reference 150 mA current capability each (QT1 and QT2) • Standby regulator 5.
