TLI4971 - high precision coreless current sensor

Description

TLI4971 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current detection outputs.

Features

  • & Benefits.
  • Integrated current rail with typical 220µΩ insertion resistance enables ultra-low power loss.
  • Less than 1nH parasitic inductance of integrated current rail enables wide bandgap design.
  • Bandwidth of 240kHz enables wide range of.

📥 Download Datasheet

Datasheet preview – TLI4971

Datasheet Details

Part number TLI4971
Manufacturer Infineon
File Size 1.39 MB
Description high precision coreless current sensor
Datasheet download datasheet TLI4971 Datasheet
Additional preview pages of the TLI4971 datasheet.

📁 Similar Datasheet

  • TLI5012 - GMR-Based Angular Sensor (Infineon Technologies)
  • TLIN1021-Q1 - Automotive Fault-Protected LIN Transceiver (Texas Instruments)
  • TLIN1022-Q1 - Automotive Dual Local Interconnect Network Transceiver (Texas Instruments)
  • TLIN1024-Q1 - Automotive Quad Local Interconnect Network Transceiver (Texas Instruments)
  • TLIN1028-Q1 - Local interconnect network (LIN) physical layer transceiver (Texas Instruments)
  • TLIN1028S-Q1 - Local interconnect network (LIN) physical layer transceiver (Texas Instruments)
  • TLIN1029-Q1 - LIN Transceiver (Texas Instruments)
  • TLIN1431-Q1 - Automotive LIN SBC (Texas Instruments)
  • TLIN2021-Q1 - Automotive Fault-Protected LIN Transceiver (Texas Instruments)
  • TLIN2022-Q1 - Automotive Fault Protected Dual Local Interconnect Network Transceiver (Texas Instruments)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

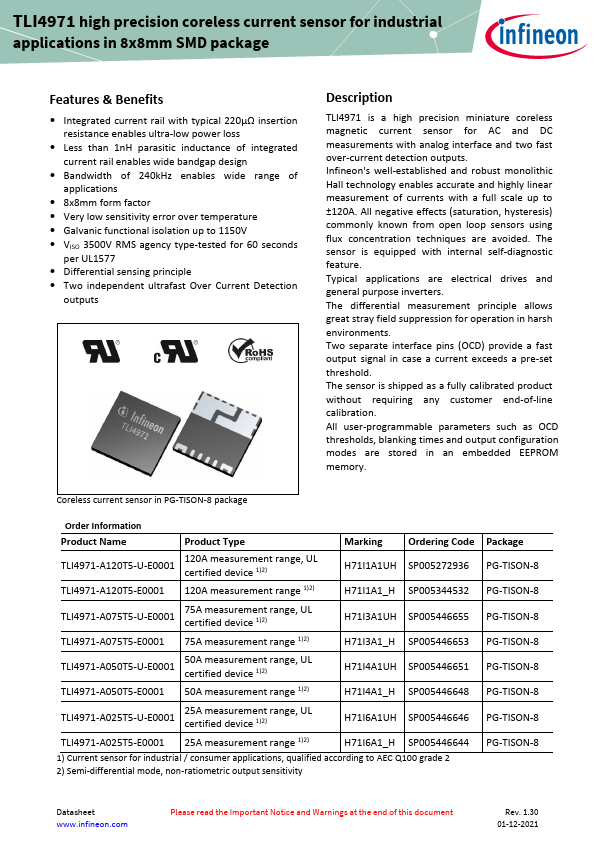

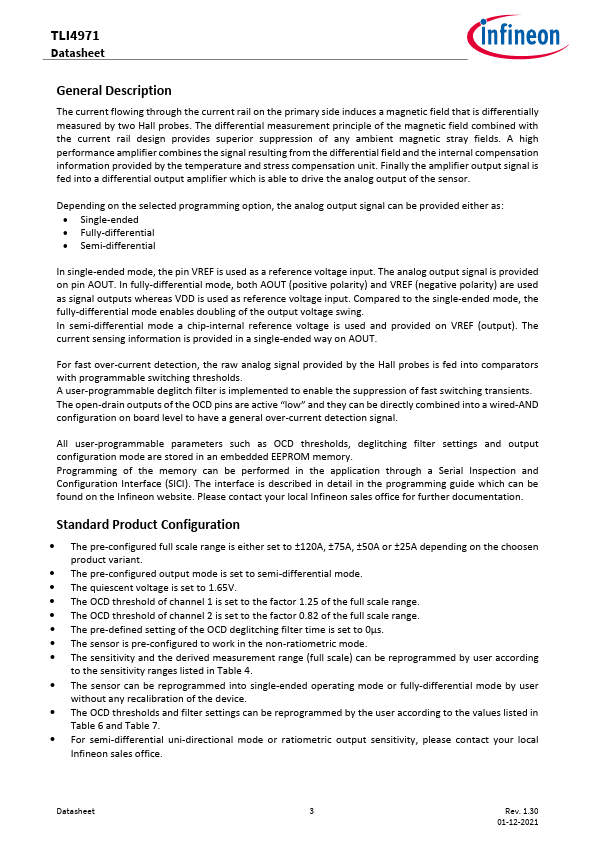

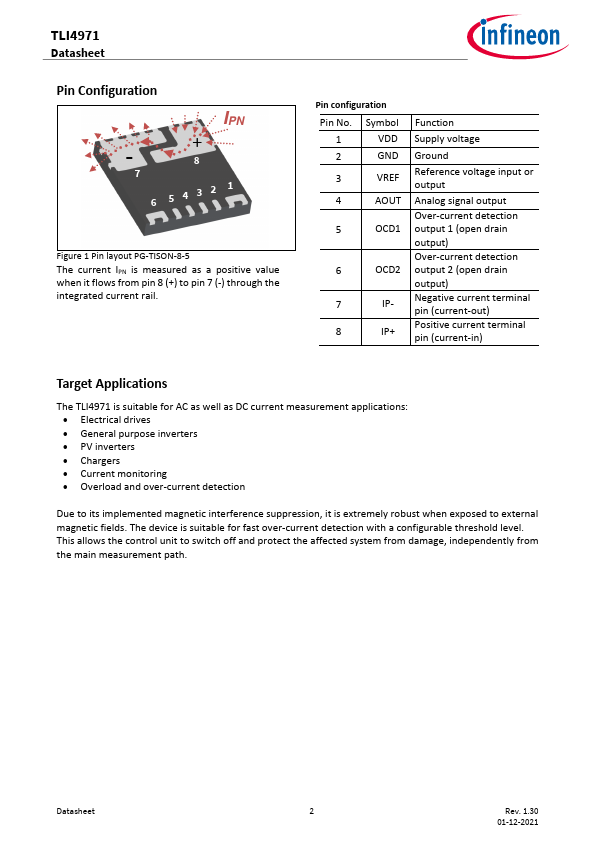

TLI4971 high precision coreless current sensor for industrial applications in 8x8mm SMD package Features & Benefits  Integrated current rail with typical 220µΩ insertion resistance enables ultra-low power loss  Less than 1nH parasitic inductance of integrated current rail enables wide bandgap design  Bandwidth of 240kHz enables wide range of applications  8x8mm form factor  Very low sensitivity error over temperature  Galvanic functional isolation up to 1150V  VISO 3500V RMS agency type-tested for 60 seconds per UL1577  Differential sensing principle  Two independent ultrafast Over Current Detection outputs s Description TLI4971 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current detection outp
