TLS850C2TEV50 Datasheet - Infineon

Low dropout linear voltage regulator

TLS850C2TEV50 Features

* Wide input voltage range from 3.0 V to 40 V

* Fixed output voltage 5 V

* Output voltage accuracy ≤ ±2%

* Output current capability up to 500 mA

* Ultra low current consumption, typical 20 µA

* Very low dropout voltage, typical 100 mV at output curren

TLS850C2TEV50 General Description

The OPTIREG™ linear TLS850C2TEV50 is a linear voltage regulator with high performance, very low dropout voltage and very low quiescent current. With an input voltage range of 3 V to 40 V and very low quiescent current of only 20 µA, this regulator is perfectly suitable for automotive or other supply.

TLS850C2TEV50 Datasheet (839.33 KB)

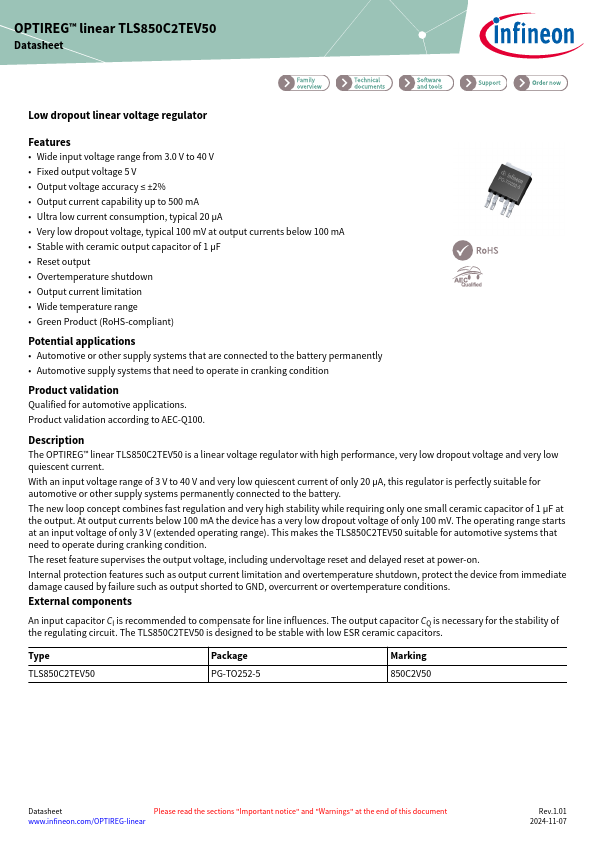

Preview of TLS850C2TEV50 PDF

Datasheet Details

Part number:

TLS850C2TEV50

Manufacturer:

Infineon ↗

File Size:

839.33 KB

Description:

Low dropout linear voltage regulator.

📁 Related Datasheet

TLS850C2TEV33 Low dropout linear voltage regulator (Infineon)

TLS850D0TA Low Dropout Linear Voltage Regulator (Infineon)

TLS850F0TAV50 Low Dropout Linear Voltage Regulator (Infineon)

TLS850F1TAV50 Low Dropout Linear Voltage Regulator (Infineon)

TLS857x008C1F Wet Tantalum Capacitors (Mallory)

TLS805x030C1A Wet Tantalum Capacitors (Mallory)

TLS8103 132 RGB Segment x 132 Common Driver & Controller (Teralane Semiconductor)

TLS810B1 Ultra Low Quiescent Current Linear Voltage Regulator (Infineon)

TLS810C1EJV33 Ultra Low Quiescent Current Linear Voltage Regulator (Infineon)

TLS810D1EJV50 Ultra Low Quiescent Current Linear Voltage Regulator (Infineon)

TAGS

TLS850C2TEV50 Low dropout linear voltage regulator Infineon

Image Gallery

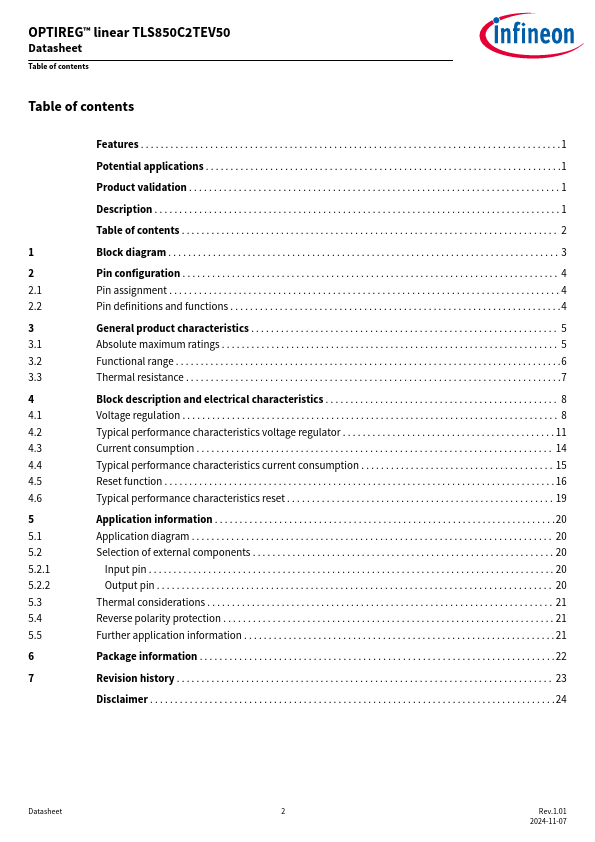

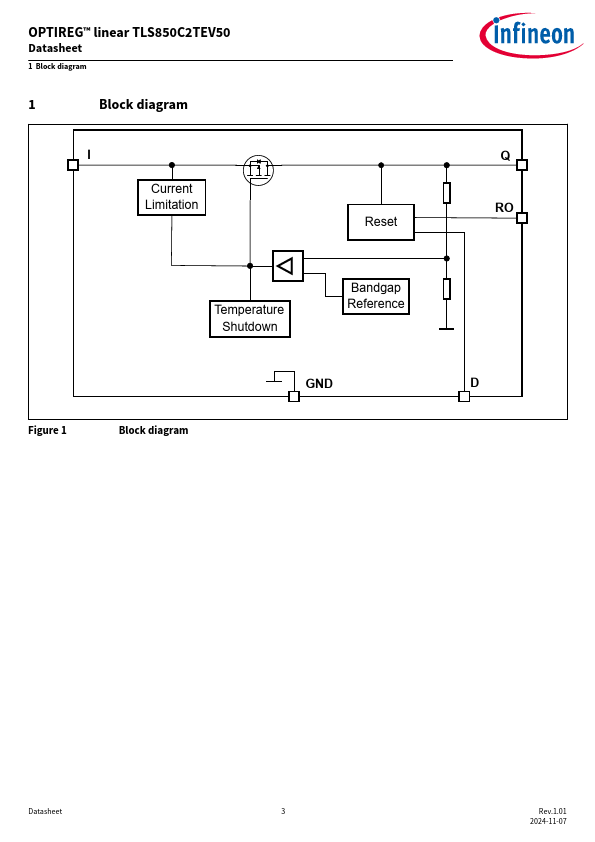

TLS850C2TEV50 Datasheet Preview Page 2 TLS850C2TEV50 Datasheet Preview Page 3
