TT570N16KOF Datasheet - Infineon

TT570N16KOF Phase Control Thyristor Module

Netz-Thyristor-Modul Phase Control Thyristor Module Technische Information / technical information TT570N16KOF Key Parameters VDRM / VRRM ITAVM ITSM VT0 rT RthJC Base plate Weight 1600 V 600 A (TC=85 °C) 17000 A 0,8 V 0,23 mΩ 0,058 K/W 60 mm 1450 g For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Druckkontakt-Technologie für hohe Zuverlässigkeit Advanced Medium Power Technology (AMPT) Industrie-Standard-Gehäuse Elek.

TT570N16KOF Features

* Pressure contact technology for high reliability

* Advanced Medium Power Technology (AMPT)

* Industrial standard package

* Electrically insulated base plate Typische Anwendungen

* Sanftanlasser

* Gleichrichter für Antriebsapplikationen

* Kurzschließer-Applikationen

TT570N16KOF Datasheet (524.10 KB)

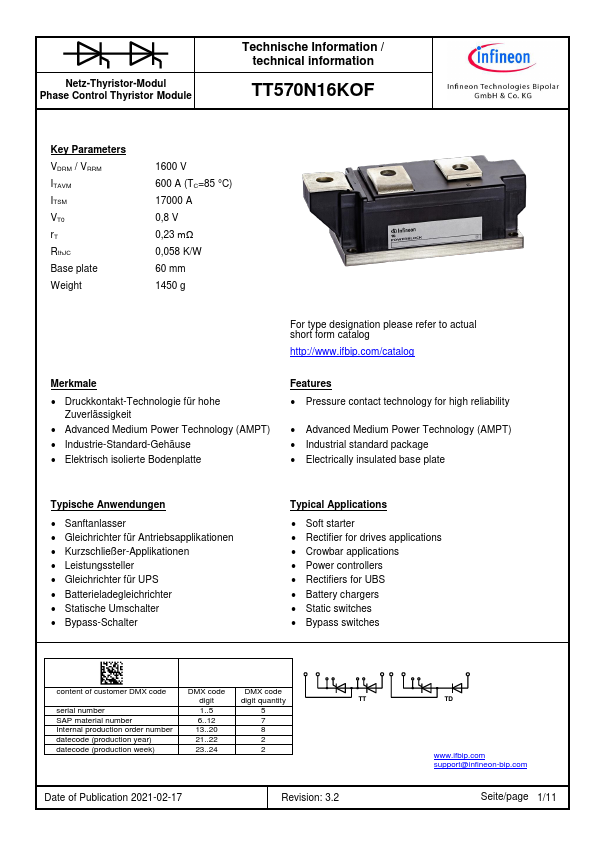

Preview of TT570N16KOF PDF

Datasheet Details

Part number:

TT570N16KOF

Manufacturer:

Infineon ↗

File Size:

524.10 KB

Description:

Phase control thyristor module.

📁 Related Datasheet

TT570N Phase Control Thyristor (Infineon)

TT500N Phase Control Thyristor (Infineon)

TT500N Thyristor (Eupec)

TT500N16KOF Thyristor SCR (Eupec Power Semiconductors)

TT520N22KOF Phase Control Thyristor (Infineon)

TT5333A 2-Wire Programmable Transmitter (TT)

TT5334A 2-Wire Programmable Transmitter (TT)

TT5334B 2-Wire Programmable Transmitter (TT)

TT5334B3B 2-Wire Programmable Transmitter (TT)

TT5335A 2-Wire Transmitter (TT)

TAGS

TT570N16KOF Phase Control Thyristor Module Infineon

Image Gallery

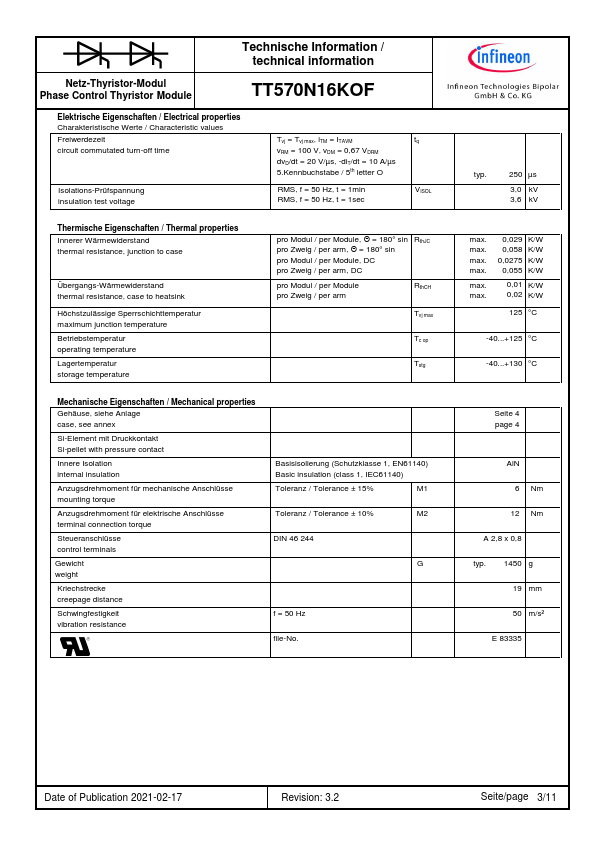

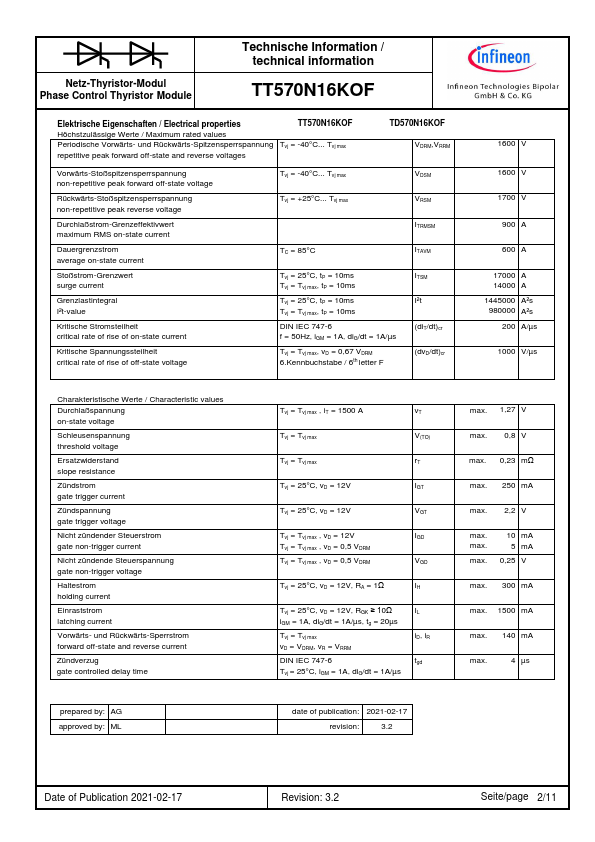

TT570N16KOF Datasheet Preview Page 2 TT570N16KOF Datasheet Preview Page 3
