DM01 - DC to DC Converter

Features

DC-DC Step-Down converter .
Wide Input voltage range .
Operating temperature range: -25℃ to +85℃ .
Isolation voltage up to 1.5K VDC .
Regulated output, Low ripple & noise .
Output short circuit, over-current protection .
High efficiency up to 92% Selection Guide Certification Part No. DM01‐033030B FCC DM01‐050030B DM01‐090030B DM01‐120030B Input Voltage 5.0‐28V 8.0‐28 12‐28V 15‐28V Output Voltage.

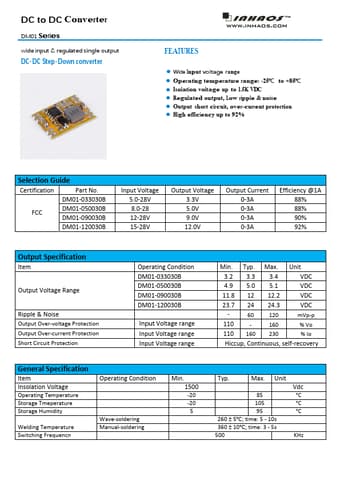

DM01 DC to DC Converter by Inhaos - Datasheet Preview — Datasheet preview – DM01

Datasheet Details

Part number	DM01
Manufacturer	Inhaos
File Size	301.34 KB
Description	DC to DC Converter
Datasheet	DM01 Datasheet
Additional preview pages of the DM01 datasheet.

📁 Similar Datasheet

DM0265R - FSDM0265R (Fairchild Semiconductor)
DM0265R - Green Mode Power Switch (ON Semiconductor)
DM0365R - FSDM0365R (Fairchild Semiconductor)
DM0365R - Green Mode Power Switch (ON Semiconductor)
DM0465R - FSDM0465R (Fairchild Semiconductor)
DM0465RE - FSDM0465RE (Fairchild Semiconductor)
DM0465RS - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
DM05 - (DM0x) SPST Standard DIP Switches (Apem Components)
DM0565R - FSDM0565R (Fairchild Semiconductor)
DM07652R - FSDM07652R (Fairchild Semiconductor)

Other Datasheets by Inhaos

Full PDF Text Transcription

Click to expand full text

DC to DC Converter DM01 Series www.inhaos.com wide input & regulated single output FEATURES DC-DC Step-Down converter   Wide Input voltage range  Operating temperature range: -25℃ to +85℃  Isolation voltage up to 1.5K VDC  Regulated output, Low ripple & noise  Output short circuit, over-current protection  High efficiency up to 92% Selection Guide Certification Part No. DM01‐033030B FCC DM01‐050030B DM01‐090030B DM01‐120030B Input Voltage 5.0‐28V 8.0‐28 12‐28V 15‐28V Output Voltage 3.3V 5.0V 9.0V 12.

Published: Feb 1, 2019 |
