IP2189 - Fast Charging Physical Layer

IP2189 Description

IP2189 Fast Charging Physical Layer IC for USB TypeC interfaces with internal load switch integrated TypeC PD2.0/PD3.0, QC3.0/QC2.0, FCP, AFC, Apple 2.
IP2189 is a fast charging Physical Layer IC dedicated for USB ports, which supports several kinds of fast charging standards, including USB TypeC PD2.

IP2189 Features

* Support charging standards including :
* Support USB TypeC/PD2.0/PD3.0
* Support QC3.0/QC2.0 Class A - Support QC3.0 Class A: 3.6V~12V - Support QC2.0 Class A: 5V, 9V, 12V
* Support Huawei® FCP: 5V, 9V, 12V
* Support Samsung® AFC: 5V, 9V, 12V
* Support Apple® 2.4A: DP = 2.7

📥 Download Datasheet

Preview of IP2189 PDF

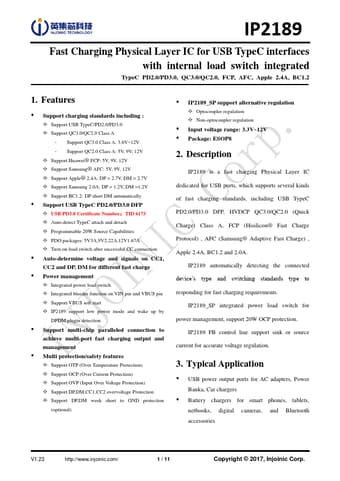

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP2189
Manufacturer
Injoinic
File Size
809.83 KB
Datasheet
IP2189-Injoinic.pdf
Description
Fast Charging Physical Layer
