ILE4276V10S, ILE4276V50G Datasheet - Integral

ILE4276V10S ICs of voltage regulator

Chip pad number 01 02 03 04 Package pin number 01 02 03 04 05 05 Symbol I INH GND NC VA Q Function Input Inhibit input Common pin (Ground) For ILE4276V85G, ILE4276V50G, ILE4276V10G pin is not used Adjustment input (for ILE4276VG) Output ILE4276-Spe, M, Normal.dot, 316416, 2011-11-09, V 1.1 2 .

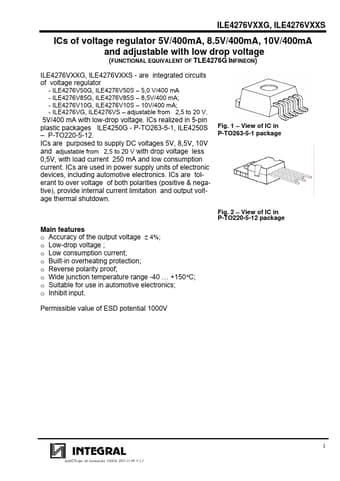

ILE4276VXXG, ILE4276VXXS ICs of voltage regulator 5V/400mA, 8.5V/400mA, 10V/400mA and adjustable with low drop voltage (FUNCTIONAL EQUIVALENT OF TLE4276G INFINEON) ILE4276VXXG, ILE4276VXXS - are integrated circuits of voltage regulator - ILE4276V50G, ILE4276V50S 5,0 V/400 mA - ILE4276V85G, ILE4276V85S 8,5V/400 mA; - ILE4276V10G, ILE4276V10S 10V/400 mA; - ILE4276VG, ILE4276VS adjustable from 2,5 to 20 V. 5V/400 mA with low-drop voltage. ICs realized in 5-.
