IN74AC245 Datasheet - Integral

IN74AC245 Octal 3-State Noninverting Bus Transceiver High-Speed Silicon-Gate CMOS

TECHNICAL DATA IN74AC245 Octal 3-State Noninverting Bus Transceiver High-Speed Silicon-Gate CMOS The IN74AC245 is identical in pinout to the LS/ALS245, HC/HCT245. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. The IN74AC245 is a 3-state noninverting transceiver that is used for 2-way asynchronous communication between data buses. The device has an active-low Output Enable pin, which is used to place the I/O ports int.

IN74AC245 Datasheet (146.96 KB)

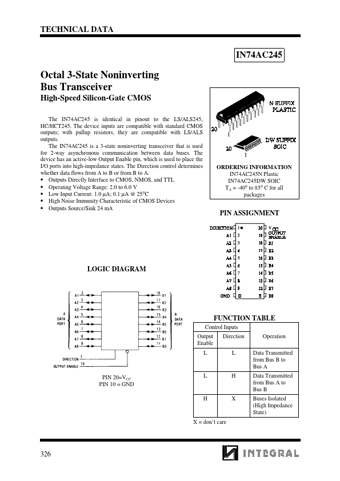

Preview of IN74AC245 PDF

Datasheet Details

Part number:

IN74AC245

Manufacturer:

Integral

File Size:

146.96 KB

Description:

Octal 3-state noninverting bus transceiver high-speed silicon-gate cmos.
