IN74AC299, 8-Bit Bidirectional Universal Shift Register with Parallel I/O High-Speed Silicon-Gate CMOS

TECHNICAL DATA IN74AC299 8-Bit Bidirectional Universal Shift Register with Parallel I/O High-Speed Silicon-Gate CMOS The IN74AC299 is identical in p.

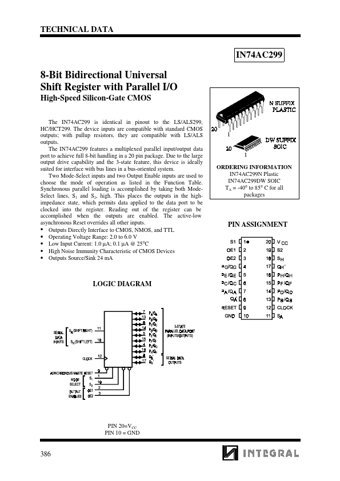

datasheet Preview Page 1 from Datasheet4u.com

IN74AC299_Integral.pdf

IN74AC299 Datasheet Preview — Preview of IN74AC299 PDF

Datasheet Details

Part number:

IN74AC299

Manufacturer:

Integral

File Size:

251.52 KB

Description:

8-Bit Bidirectional Universal Shift Register with Parallel I/O High-Speed Silicon-Gate CMOS

Features

* a multiplexed parallel input/output data port to achieve full 8-bit handling in a 20 pin package. Due to the large output drive capability and the 3-state feature, this device is ideally suited for interface with bus lines in a bus-oriented system. Two Mode-Select inputs and two Output Enable inputs

Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef
