IN93AA46D 1K-BIT SERIAL EEPROM

The IN93LC46 is a Electric erasable programmable ROM (EEPROM) memory data capacity 1K (128x8 or 64x16) with 3-wire interface. There are 3 modification of ICs A: ICs IN93AA(LC)46AD/AN are 8 bits registers (128х8) - ORG pin is not used B: ICs IN93AA(LC)46BD/BN are 16 bits registers (64х16) - ORG pin i.

IN93AA46D Features

* 100 year 1K data retention for Ta=25oC;

* Build-in voltage multiplier;

* Serial I/O bus;

* Autoincrement of word address;

* Self-timed write cycle with auto-clear;

* 1,000,000 program/erase cycles;

* Power-up internal logic setup;

* Read cycles quantity are

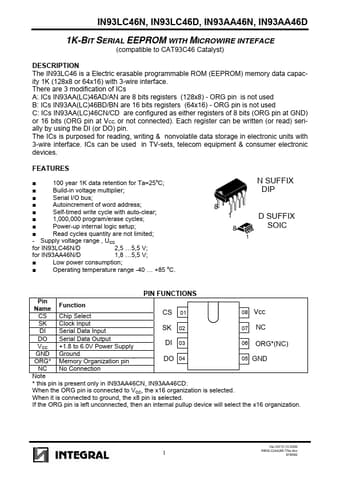

IN93LC46N-Integral.pdf

IN93AA46D Datasheet Preview — This datasheet PDF includes multiple part numbers: IN93AA46D, IN93LC46N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IN93AA46D, IN93LC46N

Manufacturer:

Integral

File Size:

214.03 KB

Description:

1k-bit serial eeprom.

Note:

This datasheet PDF includes multiple part numbers: IN93AA46D, IN93LC46N.
Please refer to the document for exact specifications by model.
