IWR0520F Datasheet - Integral

IWR0520F HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES

IWR 0520F; IWR0520FM; IWR0520U; IWR 0260U; IWR0520UM HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES ARRAYS 1 23 TO-220 MAXIMUM RATINGS Rating Symbol IWR 0520F IWR 0520U IWR 0260 U IWR 0520UM Unit. IWR 0520FM Peak Repetitive Reverse URR 200 200 600 200 V Voltage Peak Rectified Forward IF 5 5 2 Current tJ=175°C Nonrepetitive Peak Surge IFS 35 35 14 5A 35 A Current , t ≤ 8 ms Operating Junction TJ +175 °C Temperature Storage Temperature TSTG -65 … +175 °C ELECTRICAL.

IWR0520F-Integral.pdf

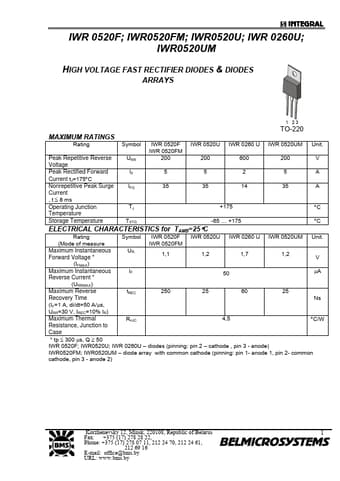

Preview of IWR0520F PDF

Datasheet Details

Part number:

IWR0520F

Manufacturer:

Integral

File Size:

109.78 KB

Description:

High voltage fast rectifier diodes & diodes.
