VHCT244 - IN74VHCT244

Integral

The VHCT244 by Integral is a IN74VHCT244. Below is the official datasheet preview.

📥 Download Datasheet

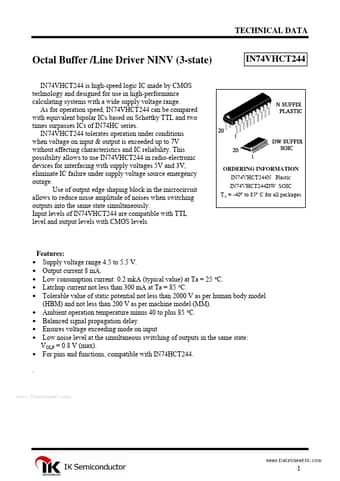

VHCT244 IN74VHCT244 by Integral - Datasheet Preview — Official preview page of the **VHCT244** IN74VHCT244 datasheet (Integral).

Datasheet Details

Part number	VHCT244
Manufacturer	Integral
File Size	506.24 KB
Description	IN74VHCT244
Datasheet	VHCT244_Integral.pdf
Additional preview pages of the VHCT244 datasheet.

VHCT244 Product details

Description

in IN74VHC241 Pinout 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND VCC 2G 1Y1 2A4 1Y2 2A3 1Y3 2A2 1Y4 2A1 Pin No.01 20 19 18 17 16 15 14 13 12 11 Symbol 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND 2A1 1Y4 2A2 1Y3 2A3 1Y2 2A4 1Y1 Description Input OUTPUT ENABLE Data input Data output Data input Data output Data input Data output Data input Data output Common output Data input Data output Data input Data output Data input Data output Data input Data output Input OUTPUT ENABLE Supply output from voltage so

Features

Supply voltage range 4.5 to 5.5 V. Output current 8 mA. Low consumption current: 0.2 mkA (typical value) at Та = 25 °С. Latchup current not less than 300 mA at Та = 85 °С. Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model (ММ).
Ambient operation temperature minus 40 to plus 85 °С.
Balanced signal propagation delay.
Ensures voltage exceeding mode on input.
Low noise level at t.
