IC89E58

(IC89E54 / IC89E64) 8-BITS SINGLE MICROCONTROLLER

IC89E58 Features

* 80C52 based architecture

* 256 Byte RAM internal RAM and 512 Bytes auxiliary RAM available

* Three 16-bit Timer/Counters

* Full duplex serial channel

* Boolean processor

* Power Save Mode : GENERAL DESCRIPTION IC89E54, IC89E58, IC89E64 are members o

IC89E58 General Description

IC89E54, IC89E58, IC89E64 are members of ICSI embedded microcontroller family. The IC89E54/58/64 uses the same powerful instruction set, has the same architecture, and is pin-to-pin compatible with standard 80C51 controller devices. They have IC89E54/58/64 all functions and some enhanced function is.

IC89E58 Datasheet (415.81 KB)

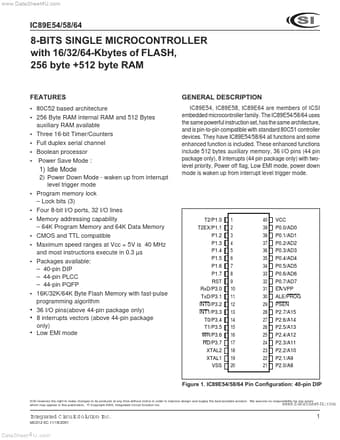

Preview of IC89E58 PDF

Datasheet Details

Part number:

IC89E58

Manufacturer:

Integrated Circuit Solution

File Size:

415.81 KB

Description:

(ic89e54 / ic89e64) 8-bits single microcontroller.
