AV9107C-11

Green PC CPU Frequency Generator

AV9107C-11 Features

* One pin slows CPU clock to 8 MHz Provides system clock and selectable CPU clock On-chip loop filter Runs up to 66 MHz at 3.3V Worst case cycle-to-cycle variation of 0.1% Smooth transition from one CPU frequency

AV9107C-11 General Description

The AV9107C-11 offers a tiny footprint solution for generating a fixed system clock and a selectable CPU clock. The 16 selectable CPU frequencies provide all necessary clocks for 386, 486 and Pentium systems. In addition, the AV9107C-11 has one pin that, when forced low, will slow the CPU clock to 8.

AV9107C-11 Datasheet (69.74 KB)

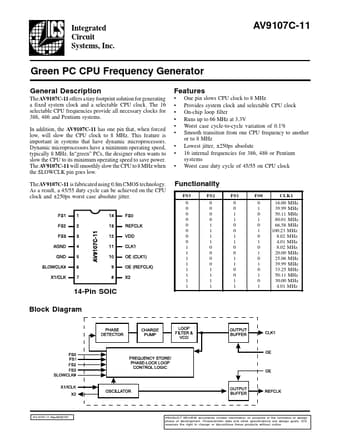

Preview of AV9107C-11 PDF

Datasheet Details

Part number:

AV9107C-11

Manufacturer:

Integrated Circuit Systems

File Size:

69.74 KB

Description:

Green pc cpu frequency generator.
