ICS525R-07 - (ICS525R-07/08) LVCMOS User Configurable Clock

ICS525R-07 Description

www.DataSheet4U.com PRELIMINARY INFORMATION ICS525-07/08 LVCMOS User Configurable Clock .
The ICS525-07/08 are the most flexible way to generate a high-quality clock output from an inexpensive crystal or clock input at low supply voltages.

ICS525R-07 Features

* Packaged as 28-pin SSOP (150 mil body)
* Available in Pb (lead) free package
* User determines the output frequency by setting all internal dividers
* Eli

ICS525R-07 Applications

* where the exact frequency is critical. For a clock input, connect to X1 and leave X2 unconnected (no capacitors on either). Configuring the Frequency The ICS525-07/08 output frequency is determined by its internal dividers according to this equation: fOUT = V
* fIN R
* OD Output Terminatio

📥 Download Datasheet

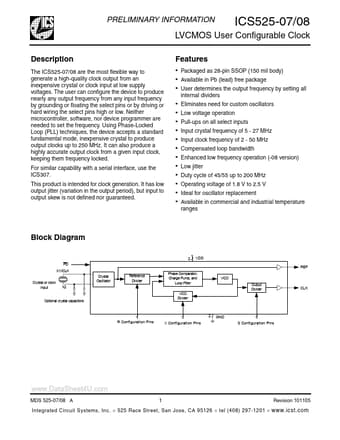

Preview of ICS525R-07 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS525R-07
Manufacturer
Integrated Circuit Systems
File Size
223.79 KB
Datasheet
ICS525R-07_IntegratedCircuitSystems.pdf
Description
(ICS525R-07/08) LVCMOS User Configurable Clock
